Export + Snippets

RAV can export self-contained HTML demo files and generate canonical web instantiation snippets for embedding animations in your codebase.

Video, animated-image, and still-image output uses the separate desktop Media Export & Recording workflow in the same EXPORT menu.

These are separate outputs. A snippet is intentionally small setup code plus a window.riveProperties object containing only the property accessors you selected. A standalone HTML export includes the runtime, embedded animation, viewer UI chrome, controls, and selected-value restoration.

What Gets Exported

• The .riv binary, base64-encoded and embedded
• The selected runtime (Canvas or WebGL2) bundled inline
• The selected runtime semver baked in
• The current artboard, playback target, and active live source mode
• Only the checked ViewModel / state-machine controls and their selected current values
• The embedded raster catalog used by each image property's single source select
• The raw applied editor config and lifecycle callbacks when Editor mode is active
• The generated canonical instantiation snippet (CDN and local variants)
• Canvas sizing mode (auto or fixed pixel dimensions)
• Complete styling for standalone viewing

Newly saved standalone HTML embeds the matching Canvas or WebGL2 runtime WASM and can play without network access. Creating the export may still require those runtime bytes from cache or network. Existing demos must be re-exported, and externally referenced assets remain external.

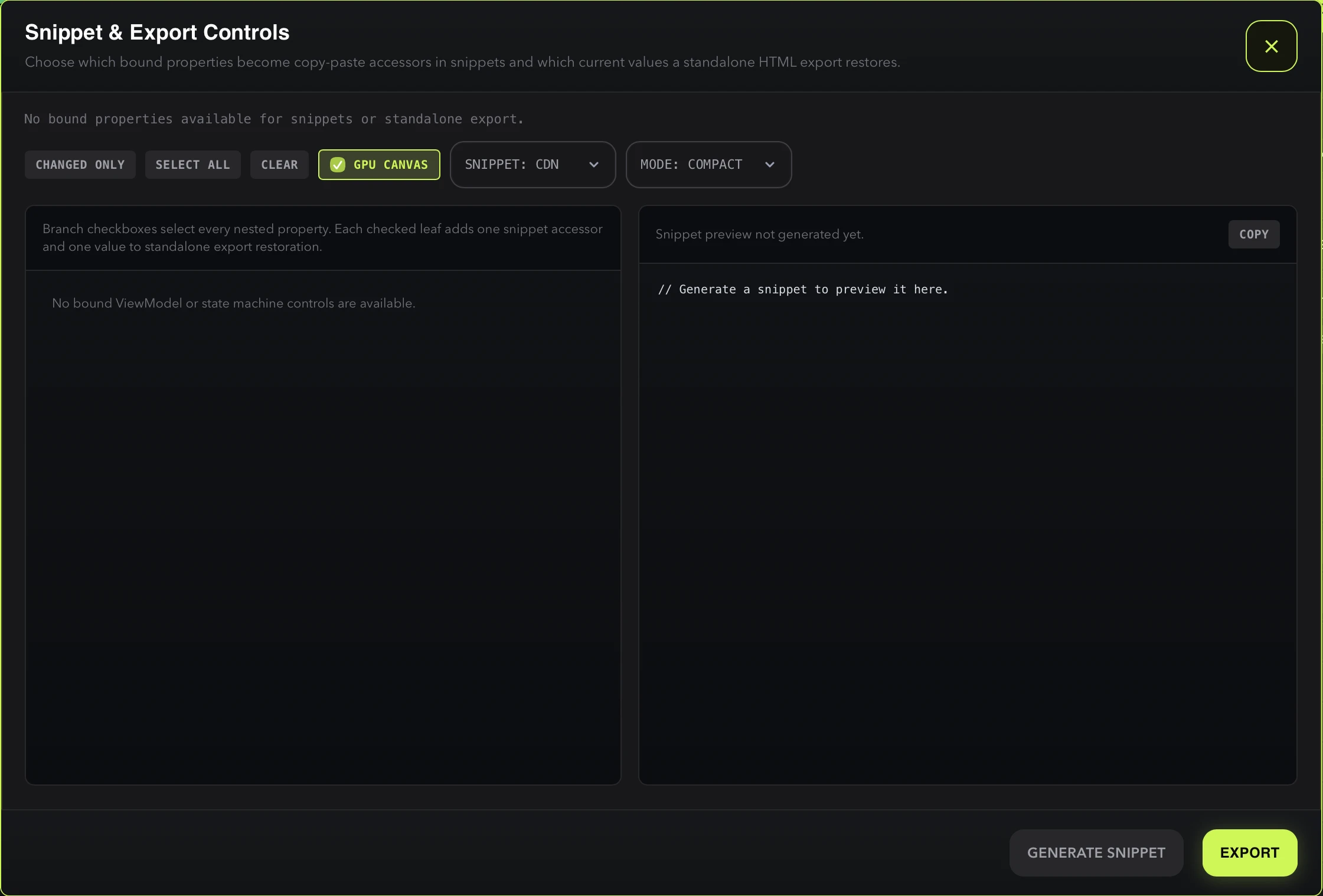

Snippet & Export Controls

The export dialog is shared by snippet generation and standalone export. It provides:

• Tree checkboxes — branch checkboxes select entire nested sections, leaf checkboxes select individual controls
• Selection — all controls are selected by default; use SELECT ALL, CLEAR, or the tree checkboxes to choose what appears in the standalone demo and snippet
• Remembered selection — a chosen subset or CLEAR is kept for the same file, artboard, and ViewModel instance, including after switching between Canvas and WebGL2 or changing the runtime version. Opening a different file, artboard, or ViewModel instance resets the selection to all controls. Exports made without the dialog, such as MCP rav_export_demo, follow the same rule
• Package source — CDN vs LOCAL (see below)
• Snippet mode — COMPACT vs SCAFFOLD (see below)
• GPU CANVAS — WebGL2 only (see below)
• Inline preview — live code preview with COPY button
• GENERATE SNIPPET — copies the snippet to clipboard
• EXPORT — saves a standalone HTML file

Package source: CDN vs LOCAL

Controls how the generated snippet pulls in the Rive runtime.

• CDN (default) — emits a runtime <script> tag pointing at the pinned @rive-app/webgl2 or @rive-app/canvasversion on unpkg, then attaches selected property accessors to window.riveProperties. Drop-in for static HTML, design tools, prototypes, and CodePen.
• LOCAL — emits ES-module import statements that resolve against your project’s node_modules (e.g. import * as rive from "@rive-app/webgl2"). Pick this when you’re inside a bundler — Vite, Next.js, Webpack — so version pinning, tree-shaking, and TypeScript types come from your own package.json.

Snippet mode: COMPACT vs SCAFFOLD

Controls how much of the bound accessor surface ends up in the snippet body.

• COMPACT (default) — only the controls you ticked in the tree appear as direct typed runtime accessors. Captured values are not inlined. This is the smallest ready-to-paste form for wiring the properties your page actually uses.
• SCAFFOLD — lists every available control on the loaded animation, but emits active accessors only for checked controls and comments out the rest. Use it as a starter map when you expect to select more controls later. SELECT ALL enables the full control surface.

These two axes are independent — CDN + COMPACT is the default for prototyping embeds, LOCAL + SCAFFOLD is the most useful when you’re pulling the snippet into an app and want all controls documented. MCP clients can drive both via thepackage_source and snippet_mode arguments ongenerate_web_instantiation_code and rav_export_demo_visual.

GPU Canvas

Available only when the WebGL2 renderer is active, matching the toolbar toggle described in UI Layout. Enabling GPU CANVAS adds enableGPUCanvas: true to the generated snippet or standalone export and sets useOffscreenRenderer: false, so exported and embedded animations render with the same Rive GPU Canvas features — such as 3D shaders — as desktop playback.

Exporting Workflow

1. Load and configure your animation in RAV
2. Adjust playback, runtime, controls, and canvas sizing to the desired state
3. Click EXPORT in the toolbar
4. Use the dialog to choose snippet accessors and standalone-export values
5. Copy the snippet directly or save a standalone HTML file

Applied editor callbacks and non-toolbar config execute in the exported standalone page after its binding and snapshot-restore lifecycle. Changes still marked as an unapplied draft remain out of the export.

ViewModel Control Parity

Standalone exports rebuild the live ViewModel list-label resolver and embedded-image catalog. Authored list labels therefore follow the same direct-name or unique canonical-string rule, with ambiguous items falling back to Row N, and image properties retain one full-width select containing every embedded raster asset,Open file…, and Clear, backed by a hidden file input. The catalog preserves uniqueFilename identity, magic-byte MIME detection, and duplicate-name disambiguation.

Generated snippets do not rebuild this control panel. They expose selected accessors such as window.riveProperties["viewModel/card/title"], whose value or fire()/trigger() API can be used directly from the host page.

Canvas Sizing in Exports

When the viewer is pinned to a fixed canvas size, exported demos and generated snippets preserve those exact pixel dimensions. In RAV, overflow-safe auto margins keep a fixed canvas centered while it fits; once it exceeds the viewport, those margins collapse so scrolling starts at the authored top-left origin.

Limitations

• WebGL2 exports require a browser with WebGL2 support
• File size depends on the embedded .riv animation
