Where the files live#

Herald keeps an app's animations in one folder per app, so every template of that app can use them. This section tells you where that folder is and what Herald puts in it, which matters when you copy a file in by hand or clean up.

~/Library/Application Support/Herald/assets/<app>/<asset id>.riv

<app> and <asset id> are each reduced to one safe path component:

• A character outside A-Z a-z 0-9 . _ - becomes _ and a short hash is appended, so a/b and a_b stay different.
• A leading dot cannot reach a parent folder.
• For ordinary ids such as webwatcher.email and bell the folder and the file are exactly those names.

Two kinds of file live in an app's folder:

Copies keep a banner playing after the issuing app moves or deletes its own files. Nothing else is cached on disk. Deleting a manifest removes the copies of the assets it declared and leaves the other files.

The folder holds at most 32 .riv files, whichever way they arrived.

Getting a file into Herald#

There are four ways to store an animation. Pick the one that matches who owns the file: an app ships its animation in its manifest, a person uses the Designer, and an agent or script uploads. All of them end with the file in the app's folder.

Upload from a script or an agent#

Uploading copies a .riv file into the app's folder and returns the component to use. Send the path of a file on this Mac, or the file's bytes encoded as base64 (the request body is limited to 1 MB, so use a path for anything larger). Herald checks the name, the size and the 32-file limit, and it replaces a file of the same name.

herald assets add --app example.bidbot --file ~/Animations/bell.riv

{"ok": true, "kind": "rive", "app": "example.bidbot", "id": "bell", "file": "bell.riv",
 "path": "/Users/you/Library/Application Support/Herald/assets/example.bidbot/bell.riv",
 "bytes": 18432, "replaced": false, "component": {"type": "rive", "path": "bell.riv"}}

The component value in the reply is ready to paste into a template cell. Storing and managing files has one command, route and tool for each job:

Declare it in the manifest#

An app that ships its own animation lists it in its manifest as an asset. Herald copies each asset into the app's folder as <asset id>.riv when the manifest is saved, and templates refer to it by id. One bad asset is reported and never blocks the manifest: the banner shows the reason where the animation would be.

{"app": "example.bidbot", "appName": "BidBot", "version": 1,
 "fields": [{"key": "title", "type": "text", "sample": "Bid accepted"},
            {"key": "count", "type": "number", "sample": 2},
            {"key": "url", "type": "url"}],
 "assets": [{"id": "bell", "type": "rive", "path": "~/Animations/bell.riv",
             "stateMachine": "Main", "inputs": ["count", "hover"]}]}

curl -s -X PUT "$HERALD/v1/manifest" \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  --data @manifest.json

This is PUT /v1/manifest, also available as the MCP tool put_manifest. An asset has these rules:

Saving the manifest again refreshes the copy only when the file's content changed. If the source file later disappears, the earlier valid copy keeps playing.

Add it in the Designer#

In the Designer, the Assets palette lists the app's .riv files, each with a live preview.

• Add... opens a file panel and copies the chosen file into the app's folder, taking the id from the file name and making it unique.
• Remove... deletes a file after asking you to confirm.
• Drag a file onto the canvas, or click it, to place a rive component in the selected slot.

Show the whole capture

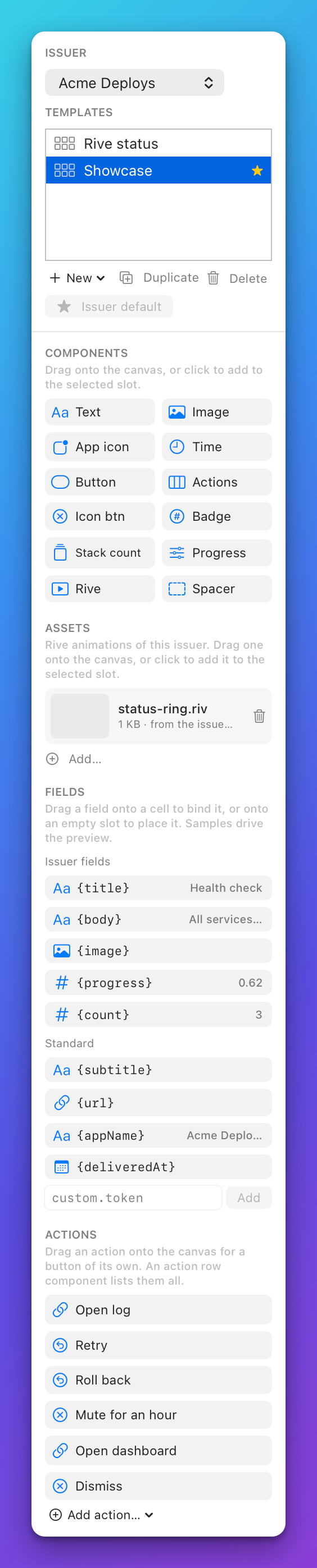

The Assets section. Each file is listed with its size. The preview square is empty in this capture because the Rive runtime does not draw offscreen.

A file the manifest declares is placed by asset, with its state machine. A file you added is placed by path, with its file name.

Select a rive cell to open its inspector, which has these controls:

Look at the inspector on the right: the Asset, the file summary and the controls in the table above. The animation itself does not draw in this capture, so the cell shows a placeholder.

Import... and Export... at the top of the Designer move a template with its animations as a bundle.

Copy it by hand#

Copy the file into ~/Library/Application Support/Herald/assets/<app>/ and reference it with a relative path:

{"type": "rive", "path": "spinner.riv", "height": 24}
