Actions

An action is a button on a banner and the thing that happens when the user presses it. This page is the reference for all of them: where they come from, the nine kinds, the fields each kind takes, the approvals Herald asks for before it runs code, the rules a template uses to change buttons, the follow-up that runs one action when nobody answers a banner, and the exact request Herald sends to your server when a callback button is pressed. If you want to add a button and see it work, start with Two-way notifications.

Concepts#

What an action is#

Every action has a label, a kind and the data its kind needs. The kind says what pressing the button does: open a link, call your server, run a command, open an app, show a reply field. Herald runs the action when a person presses the button, or when a follow-up fires on a banner nobody answered. Nothing runs when a notification arrives.

A successful action closes the banner and records the button in History. A failed action leaves the banner on screen and shows Action failed with a short reason for four seconds. Failures lists the reasons.

Where actions come from#

A banner can offer actions from three places. Herald merges them into one list, in this order.

The app that sends a notification is the issuer. Its buttons, whether they come from buttons or from the manifest, are issuer actions. Actions you add in a template are template actions. The difference decides what Herald asks before running one (see Approvals).

The merge works like this:

1. Herald takes the issuer's actions. If the notification has buttons (or its alias actions), those are used, and an explicit empty list means no buttons. Otherwise Herald looks up each id in actionIds in the manifest, ignoring ids it does not know. Otherwise the issuer offers none.
2. Herald applies the template's actionRules in order. A rule can hide, relabel, restyle, move or add an action.
3. Herald adds any action written inline in a template component (a button, iconButton or rive cell that carries its own action).

The manifest's actions are never shown just because the manifest declares them. A notification has to send buttons or name the actions with actionIds. A sample preview in the Designer stands in for an issuer that names every declared action, and says so.

A button the notification sends with the same label as a manifest action takes that action's declared id, so a rule can write "match": "markRead" for it.

The Actions tab lists the issuer's buttons first, then the ones you added, each with its own Shows control and icon.

Action kinds#

An issuer can send script and shortcut actions, in a manifest or in a notification's buttons. They run under the same permission as an issuer's command: the app must be allowed to run commands, scripts and Shortcuts (see Approvals). An issuer cannot declare snooze, because it changes how the banner behaves, so only you author it, in a template.

Approvals#

An action that runs code on your Mac, or sends data to another computer, asks first. Herald draws the question inside the banner, replacing the buttons, and never opens a window or takes the keyboard from the app you are working in. The question shows the exact command, script or address in a monospaced box.

The question replaces the buttons. This one is for a destructive button. A command question shows Run once, Always allow and Cancel in the same place, with the exact command.

The rules behind the table:

• An issuer's command, script or Shortcut runs only when the app registered with allowCommands: true and you confirmed it. If the app never asked, the press fails with commands are not allowed for APP. See POST /v1/register.
• An issuer's script question shows the file name and the SHA-256 of the file as it is now, so a changed file is a different question. A Shortcut question shows the Shortcut's name and its input text.
• A template's approval is bound to exactly what you saw: the command text, the script's name and SHA-256, or the Shortcut's name and input. If any of them changes, Herald asks again. Always allow this template covers every piece of code in that template that was listed.
• When a template action has the same id as one of the issuer's own buttons, it replaces that button. The question says so and says that the issuer will not be told about the press.
• A destructive question comes before any approval the kind itself needs.
• Approvals can be read and revoked through the API, the CLI and MCP, but never granted. The program that holds the token is the one the approval protects you from.
• The MCP tool send_notification refuses command buttons unless allowCommandButtons is true. See send_notification.

The approvals you gave are listed on the Actions tab of Settings.

Each template with code of its own shows Confirmed, Changed since confirmed or Not confirmed yet. A Revoke button appears on rows that have a confirmation.

Action object#

Manifests and templates write an action as an object with a kind. A notification writes the same thing as a button, where the kind is implied by which field is present (see Button object). The fields below belong to the action object.

When kind is omitted, Herald infers it from the first of these fields that is present:

1. reply
2. shortcut
3. script
4. command
5. callback
6. url
7. bundleId or path

With none of them the action is rejected with an action needs a 'kind'.

The styles draw the button differently:

{"label": "Open", "url": "https://example.com/bids/42"}

{
  "id": "followup",
  "label": "Follow up",
  "kind": "shortcut",
  "style": "prominent",
  "shortcut": "Create follow-up",
  "input": "{title}\n{url}",
  "symbol": "checkmark.circle"
}

Fields by kind#

Each kind adds its own fields to the action object. Fields a kind does not use are ignored.

url action#

Opens a link in the default browser or mail client. Only http, https and mailto links open.

In a template action each token is percent-encoded so a value cannot add query parameters. A token at the very start whose value is itself an openable link, such as {url}, is kept whole. A link the issuer sent is used as written.

{"label": "Open", "kind": "url", "url": "https://example.com/bids/42"}

{
  "id": "open-bid",
  "label": "Open bid",
  "kind": "url",
  "style": "prominent",
  "url": "https://example.com/bids/{bidId}",
  "symbol": "arrow.up.right.square"
}

callback action#

Sends an HTTP request to a server, so the app that sent the notification hears which button was pressed. The full request, timing and answer rules are in Callbacks.

A bare "kind": "callback" means "call the app back with no extra data".

{"label": "Accept", "kind": "callback"}

{
  "id": "decline",
  "label": "Decline",
  "kind": "callback",
  "style": "destructive",
  "callback": {
    "url": "http://127.0.0.1:5123/herald",
    "payload": {"decision": "decline", "bidId": 42}
  }
}

command action#

Runs a shell command as you. The command text is never edited: the notification's data does not appear in it. The data reaches the command on standard input and in environment variables, described in What a process receives.

{"label": "Open Notes", "kind": "command", "command": "open -a Notes"}

{
  "id": "archive",
  "label": "Archive",
  "kind": "command",
  "command": "jq -r '.fields.subject' | xargs -I{} ~/bin/archive-mail {}",
  "symbol": "archivebox"
}

script action#

Runs a file from Herald's scripts folder, ~/Library/Application Support/Herald/scripts/. Herald creates the folder at launch. A template can add a script action, and so can an issuer, which runs only when the app is allowed to run commands, scripts and Shortcuts. The script is always a plain file name: the issuer names a file, and you put it in the folder.

How the file runs:

• A file with the executable bit runs directly, so its first line chooses the interpreter.
• A file without it runs through the interpreter its extension names, as the table shows.
• Any other file without the executable bit fails with script is not executable (chmod +x, or use .sh, .py, .scpt).

The working directory is the scripts folder. The data arrives as described in What a process receives.

In a manifest or a notification's buttons, the same action is written with the kind or without it. Herald infers script from the field.

{"id": "log", "label": "Log", "kind": "script", "script": "log.sh"}

{"label": "Log it", "kind": "script", "script": "log-notification.sh"}

{
  "id": "file-ticket",
  "label": "File ticket",
  "kind": "script",
  "script": "file-ticket.py",
  "symbol": {"name": "ticket", "placement": "leading"}
}

shortcut action#

Runs an Apple Shortcut with shortcuts run, which is headless, so Herald treats it as code and asks for approval. A template can add one, and so can an issuer, which runs only when the app is allowed to run commands, scripts and Shortcuts. The picker in the Designer and GET /v1/shortcuts list the installed Shortcuts.

Text input goes to the Shortcut's Receive input from action as a .txt file. Without input, the Shortcut gets the merged payload as a .json file.

An issuer writes the same action in a manifest or a notification's buttons:

{"id": "fwd", "label": "Forward", "kind": "shortcut", "shortcut": "Forward to phone", "input": "{title}"}

A kind of shortcut or script without its shortcut or script name is rejected.

{"label": "Run", "kind": "shortcut", "shortcut": "Create follow-up"}

{
  "id": "followup",
  "label": "Follow up",
  "kind": "shortcut",
  "shortcut": "Create follow-up",
  "input": "{title}\n{url}",
  "symbol": "checklist"
}

openApp action#

Brings an application to the front. It runs no code, so it needs no approval, and Herald itself stays in the background. Herald uses the first of these that exists on this Mac:

1. The action's bundleId.
2. The action's path.
3. The manifest's appBundleId.
4. The manifest's appPath.
5. The bundle id the app registered with.
6. The application named like the manifest's appName, looked for as NAME.app in the folders listed below.

The folders searched in step 6 are /Applications, /Applications/Utilities, /System/Applications, /System/Applications/Utilities and ~/Applications, in that order.

With neither bundleId nor path, the action opens the app that sent the notification.

If no application resolves, nothing opens. The banner stays, shows Action failed with no installed application found, and History keeps the note LABEL: no installed application found. The template validator reports this case as a warning, not an error, because the template may be written for another Mac.

In a payload the same action is written {"label": "Open", "openApp": {"bundleId": "com.apple.mail"}}. A template can also make a click on the banner open the issuing app with "onClick": "openApp". See How banners behave.

{"label": "Open BidBot", "kind": "openApp"}

{
  "id": "open-mail",
  "label": "Open Mail",
  "kind": "openApp",
  "bundleId": "com.apple.mail",
  "path": "/System/Applications/Mail.app"
}

reply action#

Replaces the buttons with a one-line text field inside the banner, so the user can answer without leaving what they are doing. The text is stored on the notification in History and in the app's reply queue, and is sent to a callback when the action has one. Reading a reply shows how an app or an agent gets the answer.

In a manifest the same action is flat: {"id": "reply", "kind": "reply", "placeholder": "Message", "callback": {}}.

The field has a Send button, which stays off while the field is empty, and a close button (an x). The close button brings the buttons back and stores nothing. A reply is trimmed and cut at 4000 bytes. After a send, the banner closes, once the callback has been delivered when there is one.

After Reply is pressed, the field and the Send button take the place of the buttons.

With voice: true the banner shows a recording strip. Stop ends the recording and Send uploads it. Herald transcribes the recording on this Mac and sends the audio and the text back to the sender through the relay. See Cloud and Reply events.

The recording strip shows the elapsed time, with Stop and a cancel cross. Send appears after Stop.

{"label": "Reply", "kind": "reply"}

{
  "id": "reply",
  "label": "Reply",
  "kind": "reply",
  "reply": {
    "placeholder": "Message to Acme",
    "callback": {"url": "http://127.0.0.1:5123/herald", "payload": {"bidId": 42}}
  }
}

dismiss action#

Closes the banner. The notification stays in History. It has no fields. In a payload, a button with a label and no other field is a dismiss button.

{"label": "Got it", "kind": "dismiss"}

{"id": "got-it", "label": "Got it", "kind": "dismiss", "style": "cancel", "symbol": "checkmark"}

snooze action#

Hides the banner and brings it back after a set time. Only a template can add one. A notification can also ask for the clock menu with snooze: true; see POST /v1/notify.

{"label": "Later", "kind": "snooze"}

{"id": "tomorrow", "label": "Tomorrow", "kind": "snooze", "snoozeMinutes": 1440, "symbol": "moon"}

What a process receives#

A command, script or shortcut action receives the merged payload: everything Herald knows about the notification and the button. It is one JSON object.

{
  "app": "example.bidbot",
  "id": "bid-42",
  "action": {"id": "followup", "label": "Follow up", "kind": "shortcut"},
  "fields": {"title": "Bid accepted", "amount": 4200, "customer.name": "Acme"},
  "extra": {"queue": "inbox"},
  "notification": {"app": "example.bidbot", "title": "Bid accepted", "metadata": {"amount": 4200}},
  "template": "bid-update",
  "imagePath": "/Users/you/Library/Application Support/Herald/history/images/bid-42.png",
  "herald": {"followUp": false, "unattendedSeconds": null}
}

Where it goes:

The environment variables, at most 100 of them and 4 KB each:

Every process has 30 seconds. After that Herald sends SIGTERM, and two seconds later SIGKILL. Output, up to 64 KB, goes to ~/Library/Logs/Herald/actions.log, which keeps one backup generation. Show Log on the Actions tab of Settings reveals it. A second click on a banner whose action is still running is ignored. A process that exits without an error closes the banner.

Action rules#

A template's actionRules change the list of actions after the issuer's actions are collected. Use them to hide a button you do not want, rename one, give it an icon, or add your own, without asking the issuer to change anything. Rules apply in order.

Rules follow these points:

• A rule needs a match or an add.
• An add whose id already exists replaces that action and keeps its place unless position says otherwise.
• A match that matches nothing does nothing.
• hide makes relabel, style and position pointless, and the validator warns about it.

{"match": "markRead", "hide": true}

{
  "actionRules": [
    {"match": "markRead", "hide": true},
    {"match": "archive", "relabel": "Archive it", "style": "destructive", "position": 0},
    {"add": {"id": "followup", "label": "Follow up", "kind": "shortcut",
             "shortcut": "Create follow-up", "input": "{title}\n{url}"}}
  ]
}

The same rule can be added to a saved template with add_action_rule. A rule also works on buttons the notification sends, so you can relabel an issuer's button without touching the issuer.

When the callback button's label was changed by a rule, the issuer still hears its own label. The action field of the request carries the label the issuer sent.

Where actions appear#

An action is drawn in one cell of a template at most. Cells are visited from top to bottom and left to right:

• A button bound by actionRef claims that action. See button.
• An actions cell with include claims those ids, in that order. An actions cell without include shows what nothing else claimed. See actions.
• When two cells ask for the same action, the first in reading order draws it and the other renders empty. The validator warns and names both cells.

That is how one list is split across a banner: a prominent Open button on the left and a row of the rest beneath.

The look of a button#

Every action has its own look: its text, an icon with its text, or an icon only. The look belongs to the action, so two buttons in the same cell can differ.

An icon-only action needs no label. If it has one, Herald uses it as the tooltip and as what VoiceOver reads. For an issuer's action the look is a rule with match and symbol. For an action you added, symbol goes on the action.

{
  "actionRules": [
    {"match": "markRead", "symbol": {"name": "checkmark.circle", "placement": "only"}},
    {"add": {"id": "archive", "label": "Archive", "kind": "command",
             "command": "/usr/local/bin/archive",
             "symbol": {"name": "archivebox", "placement": "only"}}}
  ]
}

In the Designer, each row of the Actions tab has Shows and an icon picker with the full symbol styling.

• The reset arrow on a row puts an issuer's action back as the issuer sent it, which also undoes an icon change.
• The form for adding an action has the same Shows control.
• A symbol is a name, or an object with the keys described in Symbols.
• An unknown symbol name is a warning, and the button simply has no icon.

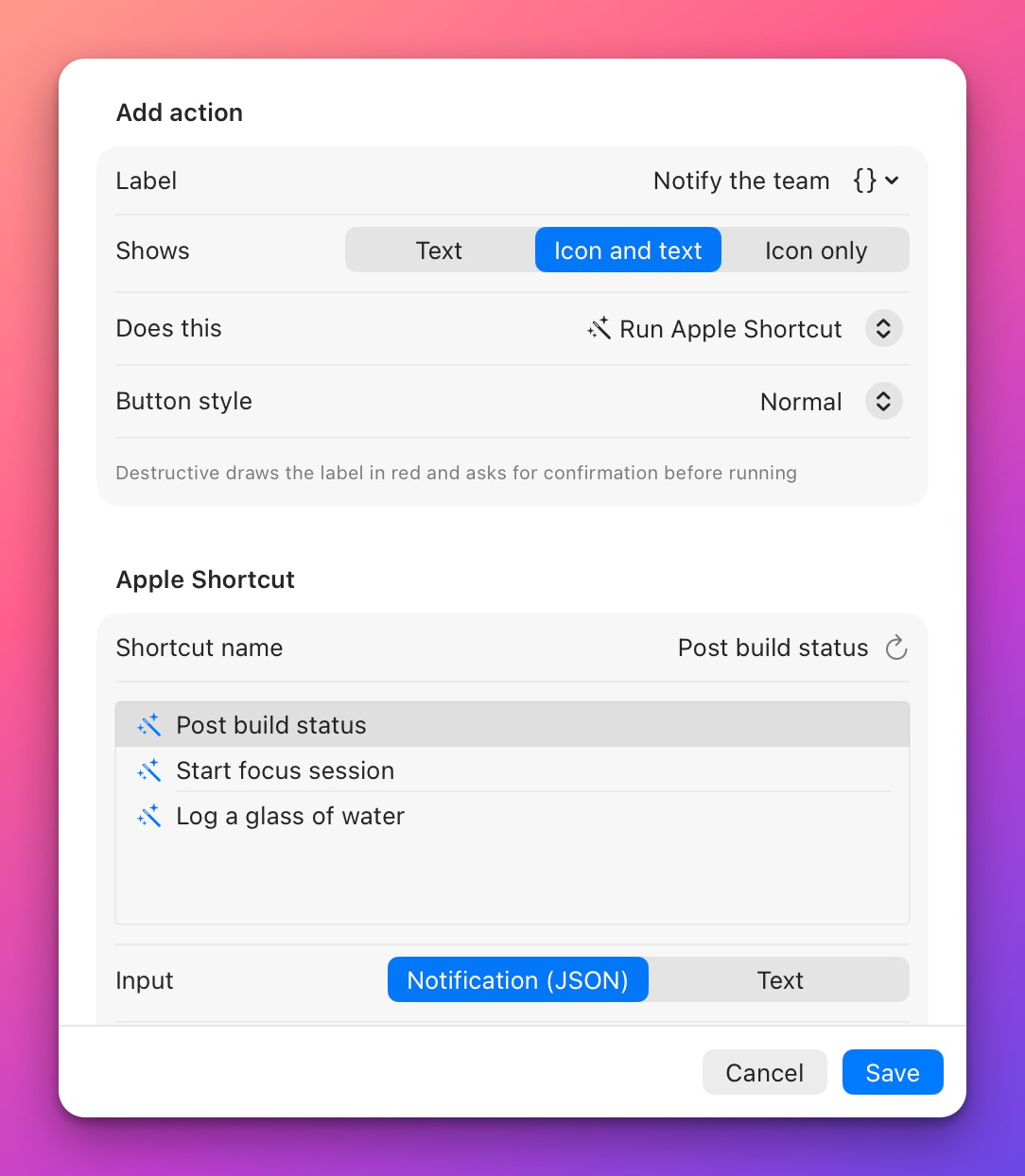

The form for one action: label, Shows, Does this, Button style and the kind's own fields. The symbol section is lower in the form.

Callbacks#

A callback is how a button talks back to the app that sent the notification. When the user presses a callback button, Herald sends one HTTP request to a URL you control. Your server does the work and answers. Herald closes the banner when your answer says it worked.

The URL is the action's callback.url, or else the app's registered callbackURL (POST /v1/register). If neither exists the press fails with no callback URL.

What Herald sends#

Herald sends POST with a JSON body. The fields of the body are documented once, with an example, in the callback request. This page covers how the request behaves.

• The headers are Content-Type: application/json and X-Herald-Attempt, which is 1 for the first try and 2 for the retry.
• action is the label of the button as the issuer sent it, even if a template relabelled it on screen.
• payload is the button's callback.payload, and is absent when the button has none.
• When the template has extra values, Herald adds them under payload.extra. It does this when the payload is an object or absent, and only if the payload does not already use the key extra.
• A callback that comes from a reply action adds the typed text as payload.reply.

What your server answers#

Answer with a 2xx status only after the action has actually happened. If it failed, answer with an error status so the user sees it and can press the button again.

Timing, retries and where the URL may point#

• Each attempt has 5 seconds in total, covering the connection, the request and the answer. A server that answers more slowly counts as timed out after 5 s.
• After a transport error (connection refused, reset, timed out) or a retryable status, Herald waits 0.75 seconds and tries once more. A second failure is final.
• The first attempt may reach your server even when its answer is lost. The retry carries the same notificationId and action, so use them to ignore a press you already handled.
• The URL must use http or https.
• A loopback address (127.0.0.1, ::1 or localhost) always works. Any other host needs your approval, asked in the banner the first time (see Approvals). One approved host is kept per app.
• While a callback is in flight, a second press on the same banner is ignored.

A complete server you can run, with the registration and the notification that uses it, is in Add a button that calls your server.

Reading a reply#

A reply goes to three places: the notification's record in History, the app's reply queue, and the reply's callback when it has one. An app that runs no server reads the queue.

The queue keeps at most 200 replies per app. A second reply to the same notification replaces the first.

Follow-ups#

A follow-up runs one action when a notification is left unattended. Use it for a missed banner you still want to hear about: forward it to your phone, send an email, post to a channel. The follow-up uses the same action kinds and the same approvals as a button. It differs from a button in only one way: nobody presses it, so a timer does.

The follow-up object#

The object is the same in a manifest, in a notification and in a template, under the key followUp.

Give exactly one of actionRef and action.

{"after": 600, "actionRef": "forward"}

{
  "after": "10m",
  "action": {"id": "fwd", "label": "Forward", "kind": "shortcut",
             "shortcut": "Forward to phone", "input": "{title}"}
}

A template can switch off a follow-up that the issuer declares:

{"enabled": false}

Which actions can follow up#

A follow-up that names one of the other kinds is refused with a message that says why.

Which follow-up applies#

A banner has one follow-up. When more than one place declares it, the nearest to you wins.

1. The template's followUp.
2. The notification's followUp.
3. The manifest's followUp.

A template that sets "enabled": false switches the issuer's follow-up off. A notification that sets it switches off the manifest's.

The origin of the action decides which approval applies. An action written inline takes the origin of the place that declares it: the issuer for a manifest or a notification, the template for a template. An actionRef takes the issuer's origin when the declaration is the issuer's or the named action is the issuer's, and the template's origin otherwise. Origin and approval are explained under Approvals, and the next section says what Herald does when approval is missing.

When it runs#

• The timer starts when the banner is on screen. When quiet hours hold the banner back, the timer waits with it.
• Dismissing the banner, pressing any button, replying and opening the banner cancel the timer.
• Snoozing drops the timer. When the banner returns, a new timer starts.
• A follow-up runs at most once per notification. Sending the notification again under the same id starts it over.
• Timers live in memory. When Herald quits, they are gone and the follow-up does not run.
• A banner whose auto-dismiss timeout is not longer than after closes first, so it never follows up. Validation warns about it.

What the action receives#

The action gets what a pressed button gets (see What a process receives), plus the herald key in the merged payload, the environment variables HERALD_FOLLOW_UP and HERALD_UNATTENDED_SECONDS, and the tokens {herald.followUp} and {herald.unattendedSeconds} in a Shortcut's input. One script or Shortcut can serve a button and a follow-up by branching on herald.followUp.

A callback follow-up posts the usual request with two more fields:

{"notificationId": "bid-42", "app": "example.bidbot", "action": "Forward",
 "event": "unattended", "unattendedSeconds": 612}

Approval and what you see#

A follow-up runs under the gates of a pressed button of its origin.

• An issuer follow-up that runs code needs the app's Allow this app to run commands, scripts and Shortcuts switch, and the app must have registered with allowCommands. Without the registration the follow-up fails and nothing asks.
• A template follow-up needs the template's one-time approval. Always allow this template covers an inline follow-up action, because it is part of the template's own actions.
• A callback to a host that is not this Mac, and an action styled destructive, ask the same questions as for a button.

When approval is missing at the moment the timer ends, nothing runs. The usual question appears on the banner, History records the outcome waitingForApproval, and the log says follow-up waiting for approval. Herald never opens a window or takes the keyboard for it. The action runs when you answer Run once or Always allow.

After the action runs, the banner stays. A line under the buttons reads Follow-up ran: LABEL · TIME, or Follow-up failed: REASON. The log at ~/Library/Logs/Herald/actions.log gets a follow-up ran, follow-up failed or follow-up waiting for approval entry. History keeps the followUp record.

Setting a follow-up#

Failures#

A failed action leaves the banner on screen. It shows Action failed followed by a short reason for four seconds, and Herald beeps unless sounds are muted. History is not changed, except for the note an openApp failure leaves. The reason is cut at 100 characters.

Common mistakes#

Accepted older forms#

Related#

• Two-way notifications: add a link button, a callback button, a reply field and a command button.
• Notifications API: the button object a notification sends.
• Manifests: declare an app's actions once.
• Replies API: read what the user typed, and the callback request.
• Forward a notification you missed: a follow-up that forwards a banner with a Shortcut.
• actions and button: draw actions in a template.
• Symbols: icons for buttons.
• add_action_rule: add a rule from an agent.
