Custom domain

Your relay's default address ends in workers.dev. Cloudflare runs a browser check on every workers.dev address, and that check rejects some programs before their request reaches your relay. This page explains the problem, the one-line fix that solves it for most agents, and how to give the relay an address on your own domain when you want the check gone.

It is for you if a cloud agent gets error 1010 from your relay, or if you want the relay on a stable address that you own.

The problem: error 1010#

A cloud agent calls your relay and gets 403 with Error 1010, and a message that the site owner has banned access based on the browser's signature.

This is Cloudflare's Browser Integrity Check. It looks at the User-Agent header and rejects values it considers automated, including the default of Python's urllib, which is Python-urllib/3.x. The request is stopped at Cloudflare, so the relay never sees it. On a workers.dev address the check cannot be switched off.

The simple fix: send your own User-Agent#

Any other User-Agent value passes: the defaults of curl, requests and aiohttp, a missing header, or a name of your own. For most agents this is the whole fix.

import urllib.request

req = urllib.request.Request(
    "https://herald-relay.example.workers.dev/v1/notify",
    data=b'{"title": "Build finished"}',
    headers={
        "User-Agent": "Herald-Agent/1.0",
        "Authorization": "Bearer hrk_...",
        "Content-Type": "application/json",
    },
)
urllib.request.urlopen(req)

The instructions Herald gives for cloud agents already carry this advice. Set up a custom domain only if you cannot control the agent's User-Agent, or if you want your own address.

To see whether the check is active on your relay's address, run Test connection under Settings > Cloud > Advanced. The result says so when it is.

Before you start#

• Your relay is set up. See Cloud relay.
• You have a domain in the same Cloudflare account as the relay.
• Your Cloudflare token includes the six zone permissions listed in The Cloudflare token. A token created from Herald's pre-filled page has them. If yours does not, create a new token from that page and paste it.

Steps#

1. Open Settings > Cloud > Advanced and find Custom domain.

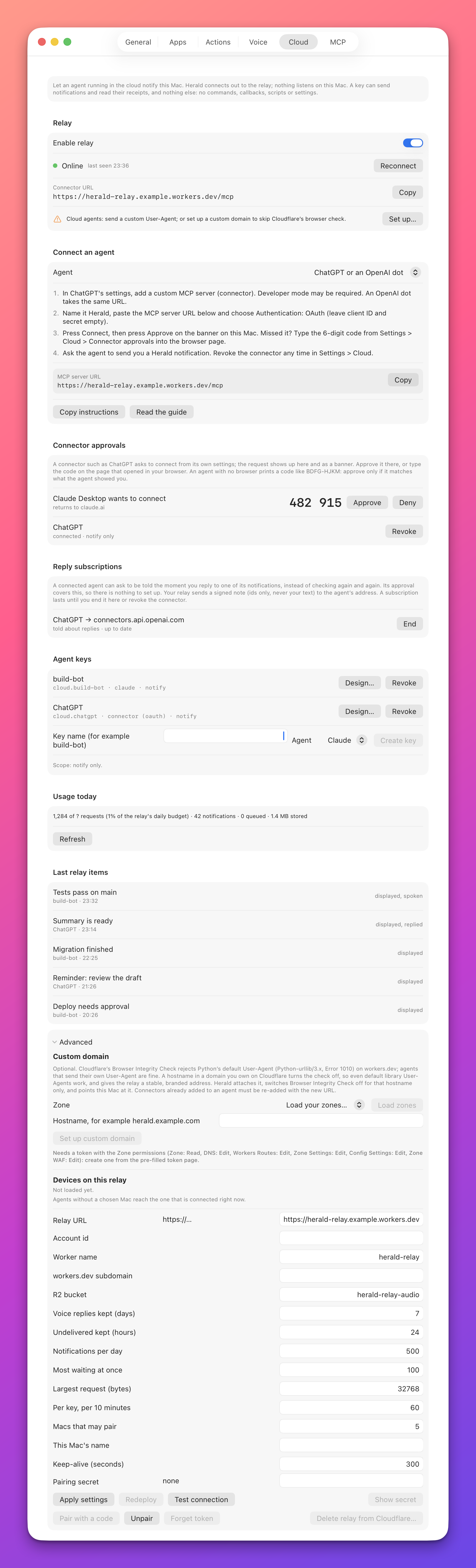

   Show the whole capture



   Advanced holds the relay's settings. Custom domain has a Zone menu, a Load zones button and a Hostname field.

2. Press Load zones.

   The Zone menu fills with the domains your token can see.

3. Choose a zone. Herald suggests a hostname such as herald.example.com. Change it if you like.

4. Press Set up custom domain.

   Herald redeploys the relay and then does four things in your Cloudflare account, naming each step:

   Step	What happens
   Attach the custom domain	Cloudflare creates the DNS record and a certificate for the hostname.
   Switch off the browser check	A rule turns Browser Integrity Check off for this hostname only.
   Skip the security challenge	A second, narrow rule skips the security-level challenge for this hostname.
   Check Bot Fight Mode	Herald reads the setting and warns you if it is on.

   Then it waits until the new address answers. The certificate can take a minute or two; press Retry if the wait times out.

5. Herald now uses the new address. The Custom domain section shows both: the workers.dev address and the Custom address (canonical).

   This Mac stays paired, and agent keys work on both addresses.

6. Add any OAuth connector again with the new Connector URL.

   A connector such as ChatGPT is bound to the address it was added with, so the existing one keeps pointing at the old address.

Check that it works#

Run Test connection again. The result reports no active browser check.

Bot Fight Mode#

If Bot Fight Mode is on for the domain, Herald tells you. On Cloudflare's free plan no rule can bypass it, so it can still challenge cloud agents. Turn it off in the Cloudflare dashboard under Security > Bots. This is a warning, not a failure: the custom domain is still set up.

Go back to workers.dev#

Press Use workers.dev again under Custom domain. Herald points this Mac back at the workers.dev address. The hostname, the DNS record and the rules stay in your Cloudflare account; delete them there if you want them gone.

If it does not work#
