Design a banner

Name: Herald
Author: IVG Design

The Designer is Herald's visual editor for banners. You lay out a template on a grid, bind components to the data an app sends, add buttons, watch a live preview and send a test banner to your screen. At the end of this guide you have a saved template that an app can name in its notifications.

Before you start#

Herald is running. The Designer is part of the app.
You know which app the template is for. The Designer lists every app Herald knows. An app that has published a manifest shows its own fields and buttons in the palette. An app without one only offers the standard fields.
Optional: read Templates for what a template is and how Herald picks one.

Steps#

1. Open the Designer#

Click the Herald icon in the menu bar and choose Design Template…. The window is called Design Template.

Other ways in: Compose… in the same menu opens the window in Quick send mode, and its Design Template… button switches to design. In Settings > Apps > Templates…, the template editor has Open in Designer.

2. Learn the parts of the window#

The window has three columns and a bar across the top. The figure shows them, and the list below it names them in the order of the numbers.

The Designer window with the issuer and palette on the left, the live preview above the grid editor in the centre and the Cell, Template and Actions inspector on the right — The whole Designer window, from the mode bar at the top to the inspector on the right. The body text cell is selected.

Mode bar. The Design and Quick send switch, and the Import… and Export… buttons for template bundles.
Issuer and templates. The Issuer menu picks the app. The Templates list shows its saved templates. New, Duplicate and Delete manage them, and Set as issuer default makes the chosen one the template used when a notification names none.
Palette. The rest of the left column: Components, Assets, Fields and Actions. You drag from here onto the grid.
Live preview. The banner drawn exactly as a delivery draws it, over a desktop-like backdrop. Its header holds the Sample and Last real switch, the light and dark switch, Fields, the problems button, Send test and Save.
Editor bar. The template name and whether it is saved, undo and redo, Merge, Split, duplicate and delete for the selected component, and the zoom control.
Grid canvas. The grid at real banner width, with every slot visible. This is where you place and select cells.
Inspector. Three tabs, Cell, Template and Actions, that edit whatever is selected.

The two dividers between the columns, and the one between the preview and the grid, can be dragged. The window remembers the sizes.

3. Choose the app and start a template#

Choose the app in the Issuer menu.
Press New. Choose Blank 3 × 4 grid to start from nothing, or a copy of one of the four built-in layouts, for example From “Image left”. Starting from a layout gives you a banner that already works.
Open the Template tab in the inspector and type a Name. Notifications ask for the template by this name.

The editor bar shows Not saved yet until you save.

4. Place a component from the palette#

Components are the pieces a banner is made of. The Components section of the palette lists them.

The left pane of the Designer: the Issuer menu, the Templates list, then the Components, Assets and Fields sections — The palette. Drag a chip from Components onto a slot, or click it to add to the selected slot.

Drag a component chip onto an empty slot of the grid. Or select a slot and click the chip.
The component appears in its cell and the live preview redraws.

The twelve chips are the Designer names in the table of Components. That table says what each one draws and links to its properties.

The Fields section lists the data the app can send, grouped as Issuer fields, Standard, Seen in notifications, Extra (yours) and Custom. Each shows a sample value. Drag a field onto a component to bind it, or onto an empty slot to place a component that shows it. The Add box adds a custom field name such as customer.name. See Bindings and tokens for where each group comes from.

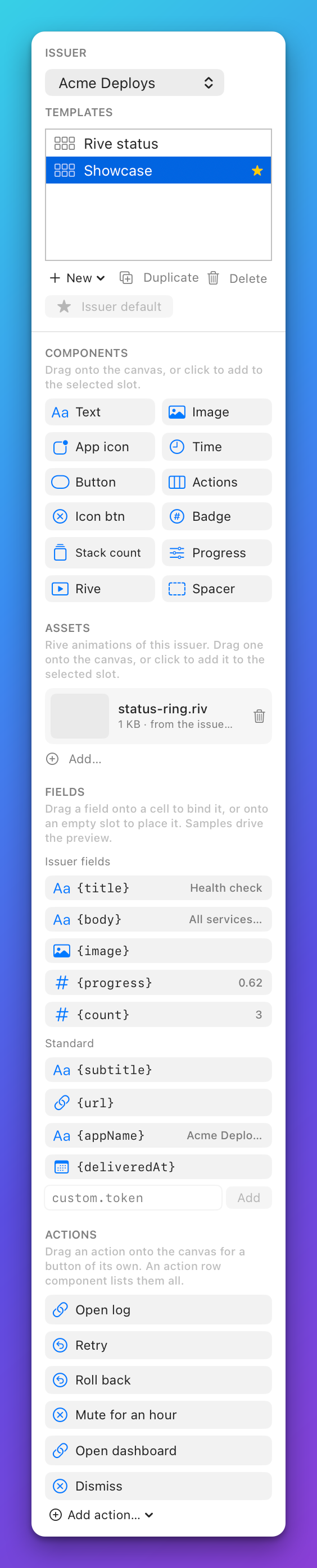

The palette from Components down to Fields, with Issuer fields and Standard fields and, below them, the Actions chips — Fields come from the manifest. The Actions section lists the issuer's buttons, which you can drag onto the grid.

5. Select a cell#

Click a cell on the grid. The inspector switches to the Cell tab.

The Designer with the title text cell selected and the Cell tab of the inspector showing Position and span, Align, Padding and the Text component bound to title — A selected text cell. The Cell tab shows where it sits, what it shows and its style. The tab continues below the figure.

The Cell tab has these parts:

Part	What it does
Header	The component, the cell's id and its row, column and span.
Position and span	Row and Column move the cell. Rows and Columns make it cover more slots. A cell can only grow into empty slots. Rows and columns are numbered from 1 here.
Align	A 3 × 3 pad that picks where the component sits inside a larger cell.
Padding	Space between the cell edge and the component.
Component	The type menu and the component's own properties.
When empty	Template, Collapse or Keep space: what the component does when the notification has no value for it.
Symbol	For App icon, Button, Actions, Icon btn and Badge: an SF Symbol. See step 8.

Shift-click several slots to select them together. At the bottom of Position and span, the buttons Split, Duplicate and Delete act on the selected cell.

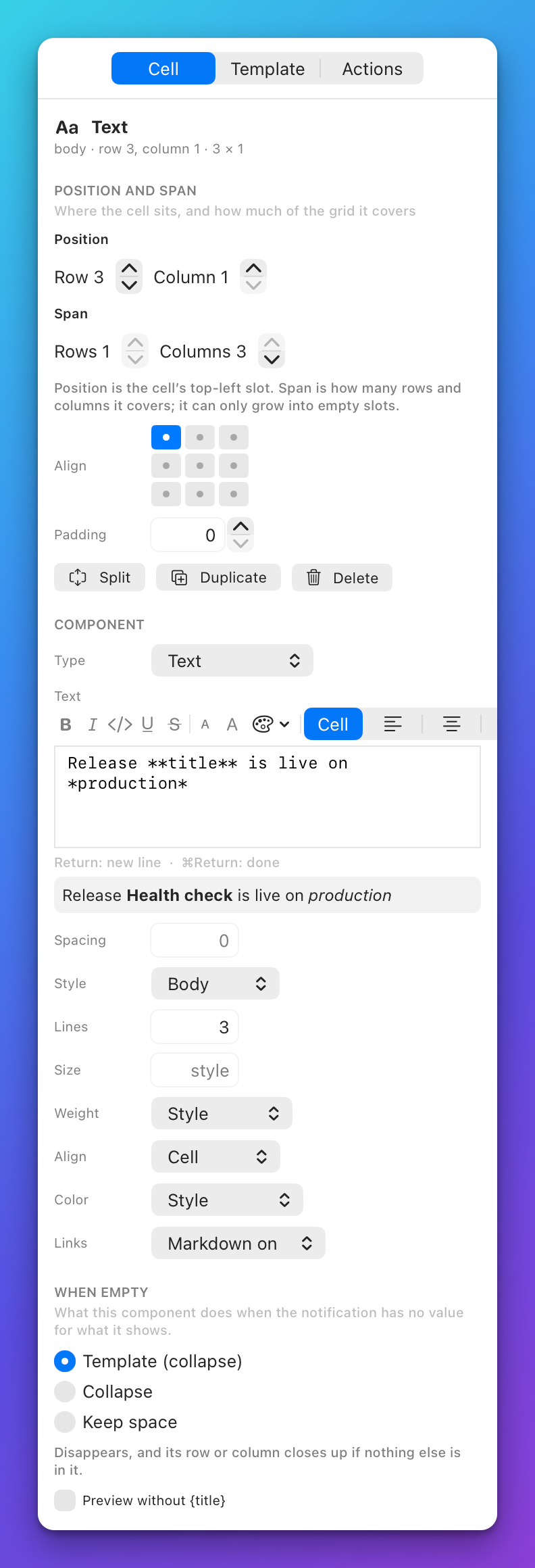

The Cell tab for a Text component with the rich-text bar above the text field, which holds a line with a bold word and an italic word — A Text cell. The bar above the field sets bold, italic, code, underline, size and colour, and the line below shows the result.

6. Use the inspector tabs#

The Template tab edits the whole template.

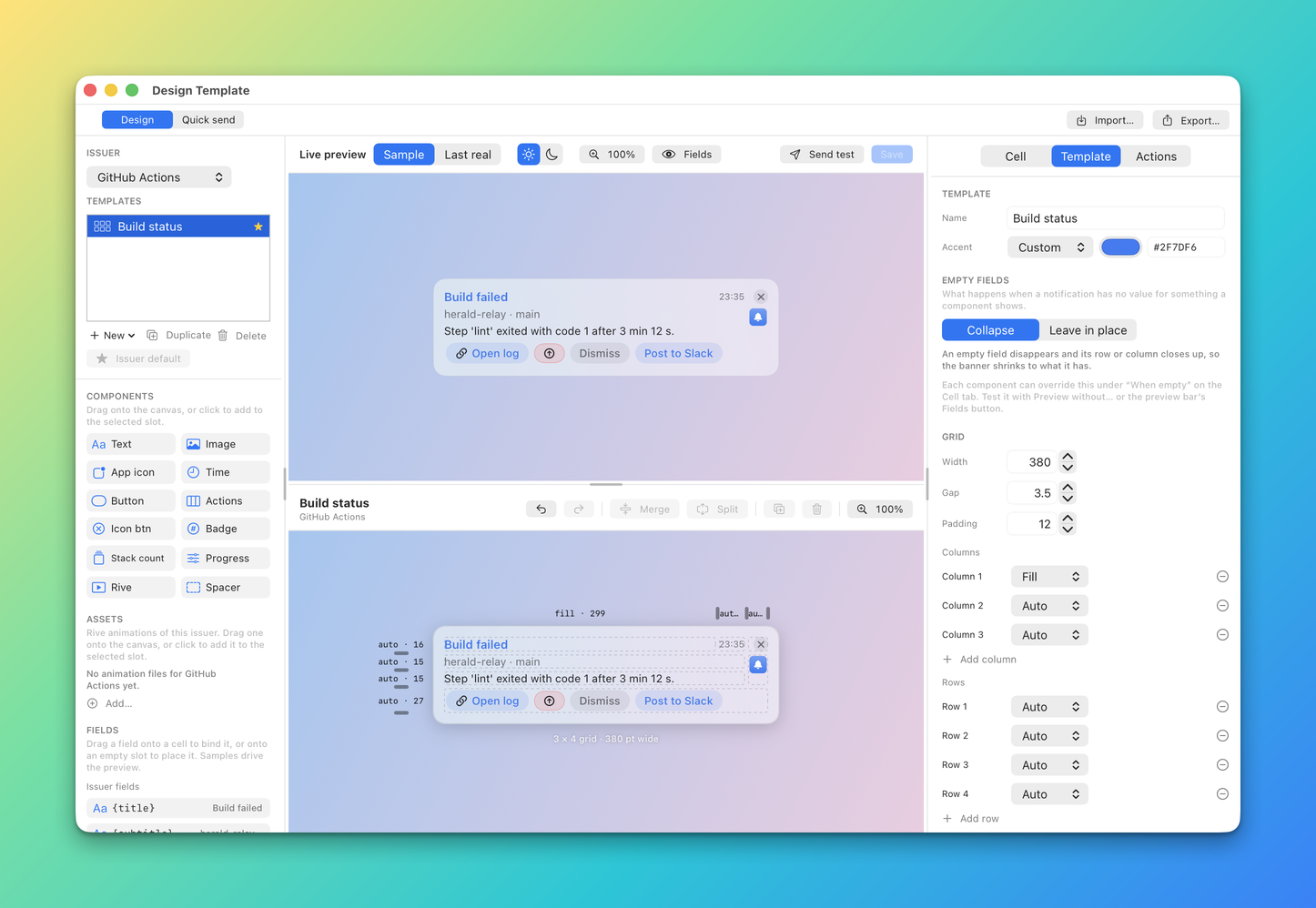

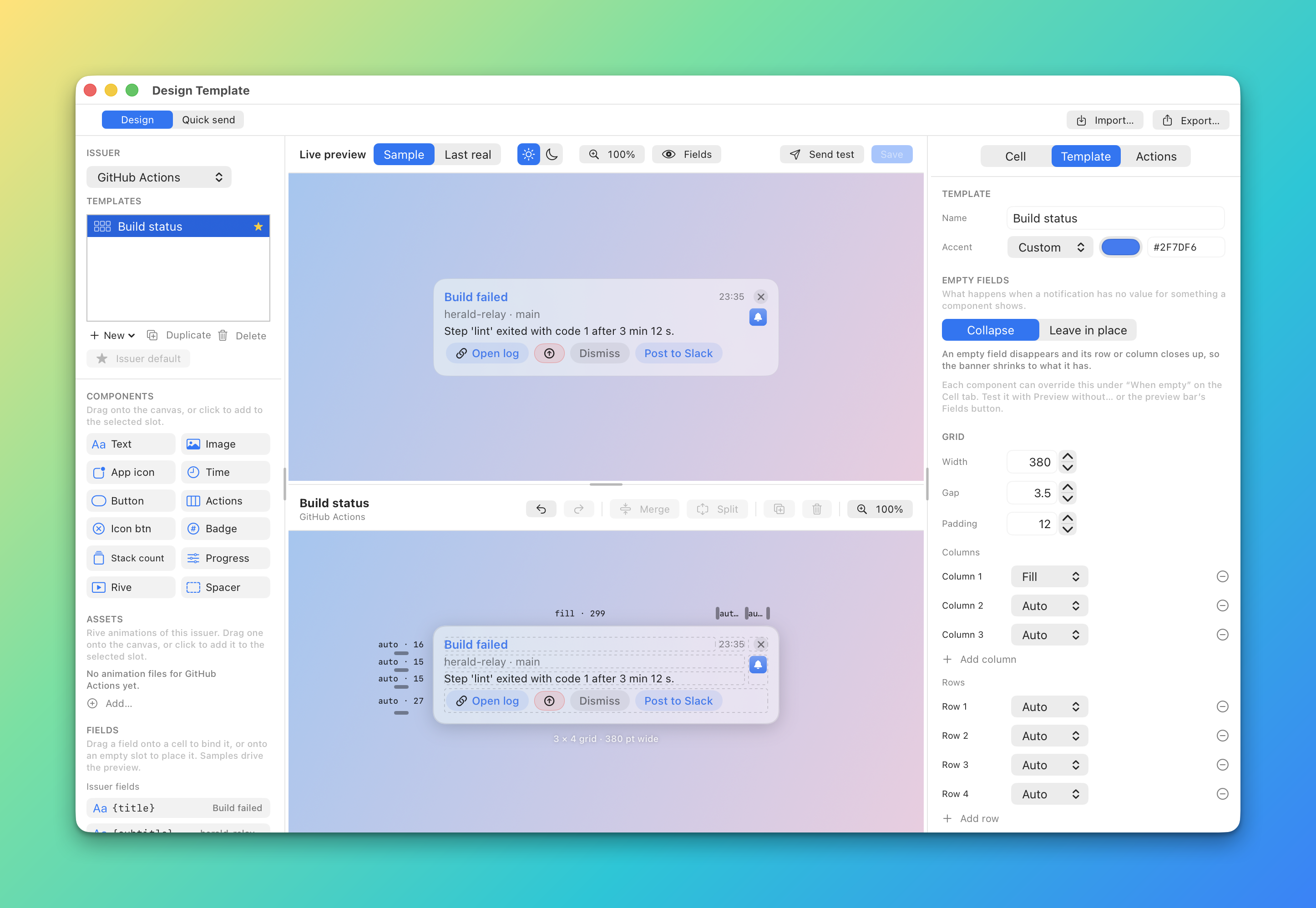

The Template tab of the inspector with Name, Accent, the Empty fields choice of Collapse or Leave in place, and the Grid width, gap, padding and column and row sizes — The Template tab: name, empty fields and grid. The tab continues below the figure.

Section	What it holds
Template	Name and Accent, the colour that tints accent-coloured components.
Empty fields	Collapse removes an empty field and closes its row or column. Leave in place keeps the space so every banner has the same layout. See Collapse semantics.
Grid	Width, Gap and Padding, then one size row for each column and each row, and Add column and Add row.
Text	Body lines, the line limit for body text that sets none of its own.
Checks	Problems the checker found. Click one to select the cell it names.

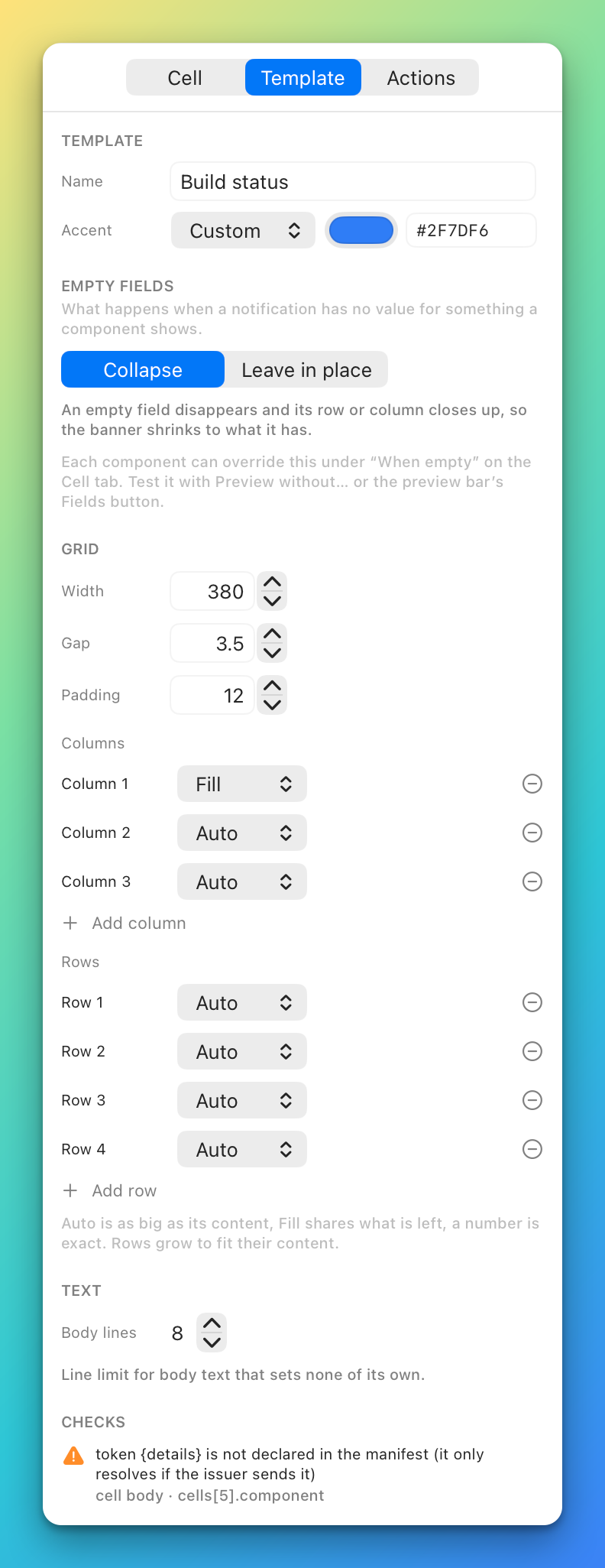

The Template tab of the inspector from Name down to Checks, which lists one warning about a token that the manifest does not declare — The Checks section at the bottom names the cell with the problem. Click the warning to select that cell.

The Actions tab edits the banner's buttons.

The Actions tab of the inspector with the issuer's Open log, Deploy and Dismiss buttons, your Post to Slack button, the Add your own buttons and Extra data — The Actions tab: the issuer's buttons, your own, the ways to add more, and extra data.

Section	What it holds
Buttons	Every button the issuer sends and every one you added. For an issuer button you can rename it, hide it, restyle it, move it up or down and reset it. For yours you can edit or delete it.
Add your own	One button for each kind: Run Apple Shortcut, Run script, Run shell command, Open link, Call back the issuer and Snooze.
Follow-up	Runs one action when the banner is left unattended. See Add a follow-up.
Extra data	Your own key and value pairs. Every action receives them, and a binding reads one as `{extra.key}`.

The Cell tab for an Actions cell with its Shows, Layout, Max, Align and Which settings — An Actions cell in the grid has its own settings in the Cell tab: which actions it shows, how it lays them out and how many buttons fit.

7. Edit the grid#

The grid canvas shows every slot of the template. A selected cell has handles on its edges, and each row and column has a size label.

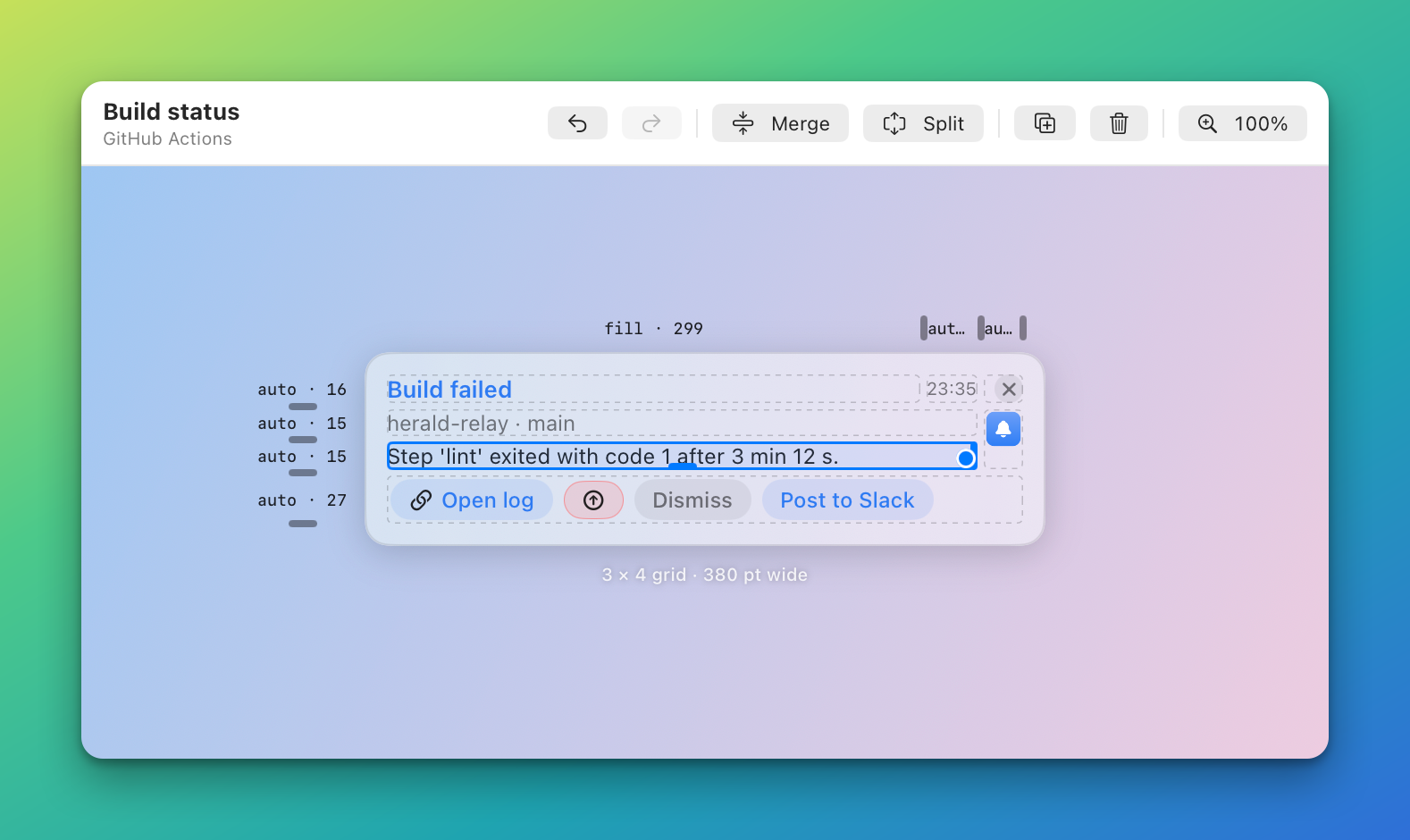

The grid canvas with the body cell selected, its resize handles, and the size labels of the columns and rows — Editing the grid: the selected cell shows handles to change its span, and a size label such as auto 16 changes a track.

Merge cells. Shift-click the empty slots to join, then press Merge in the editor bar, Merge slots in the inspector, or Merge Selected Slots in the context menu. Split reverses it.
Resize a span. Drag the handle on a selected cell to make it cover more or fewer slots.
Move a cell. Drag it to a free slot to move it, or onto another cell to swap their components. Dropping a component from the palette on a filled cell replaces that cell's component.
Change a row or column size. Click the size label above a column or beside a row and choose Auto (fit the content), Fill (share what is left) or Fixed at N pt. Drag the edge of a track to set an exact size. Or edit the sizes in the Template tab under Grid.
Add or remove tracks. Add column and Add row are in the Grid section. Each size row has a remove button. A grid has between 1 and 12 rows and columns.

The label under the canvas gives the columns first, then the rows, and the banner width. A grid with 4 columns and 3 rows that is 400 points wide reads 4 × 3 grid · 400 pt wide. The field limits are in Grid, cells and layout.

8. Pick a symbol#

A symbol is an SF Symbol, an icon from the system. Components that can carry one have a Symbol section.

In the Symbol section, type a name such as bell.badge in the Name field, or press the button beside it to browse.
Choose Browse in a sheet to open the browser over the Designer, or Browse in a floating panel to keep it beside the window.

The SF Symbols browser with the category list on the left, a search field with a size slider, a grid of symbols and an empty preview pane — The symbol browser: search, categories, Recents and Favourites. No symbol is selected yet, so the right pane waits.

Search by name or keyword, for example bin, mail or alert. The sidebar offers All symbols, Recents, Favourites and categories. The slider changes the grid size.
Select a symbol to preview it with the weight, mode and colours of the Symbol section.
Press Use symbol, or double-click a symbol, to apply it. The star adds it to Favourites, and the copy button copies its name.

Back in the Symbol section you can set Weight, Scale, the placement of the icon relative to the label, the colour mode and an optional effect. A name Herald cannot find shows the message "Not an SF Symbol on this Mac" and the component keeps its normal look. The keys are in Symbols.

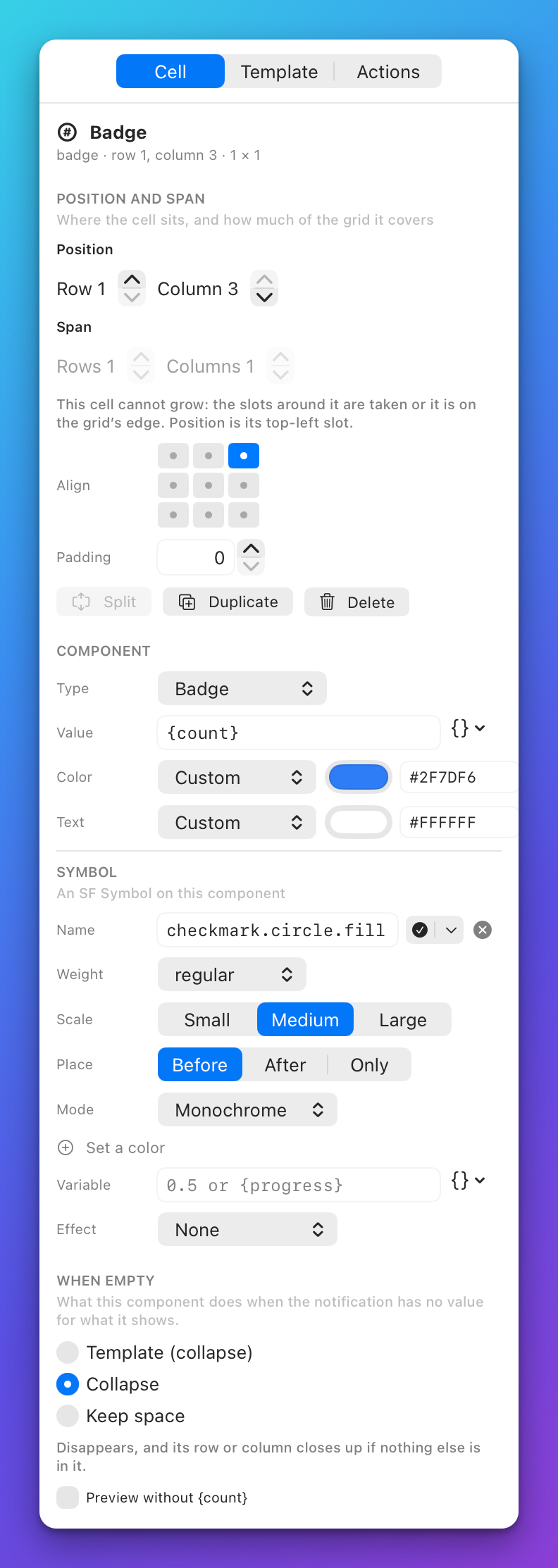

The Cell tab for a Badge cell with its Symbol section: name, weight, scale, place, mode, colour, variable and effect — The Symbol section of a Badge cell, with the name checkmark.circle.fill set.

9. Watch the live preview#

The preview above the grid redraws with every edit.

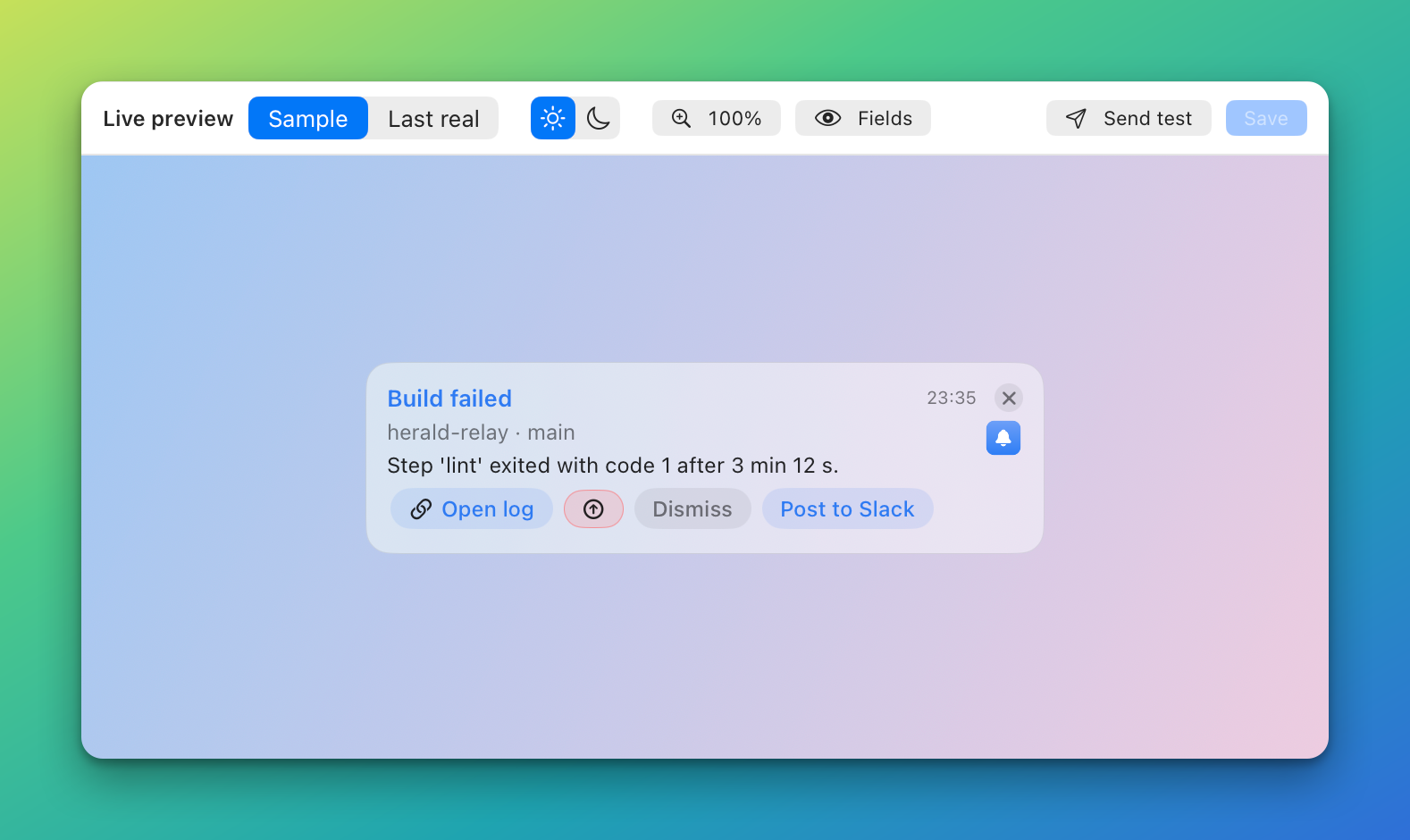

The live preview with its header: Live preview, Sample and Last real, the light and dark switch, zoom, Fields, Send test and Save — The live preview and its header. The banner is drawn the way a delivery draws it.

Sample fills the banner from the manifest's example values. Last real uses the newest actual notification of the app.
The sun and moon switch draws the banner in light or dark appearance.
Fields opens a list of the fields the template uses. Untick one to see the banner without it and to watch what collapses. The button then reads, for example, 1 absent.
A red or orange badge with a number lists the problems. Click one to select the cell it concerns.
The zoom control scales the preview from 50% to 300%.

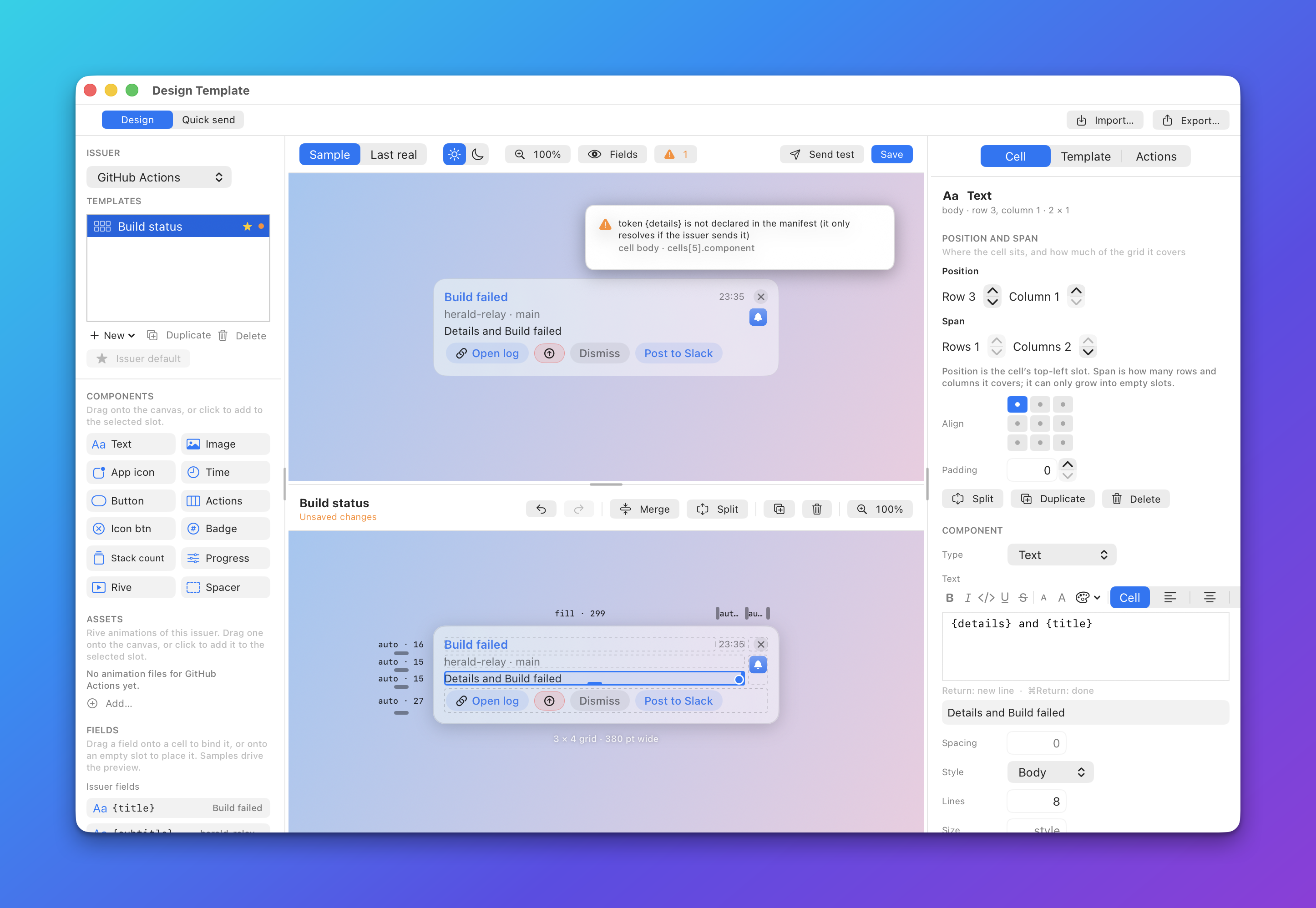

The Designer with a warning badge reading 1 in the preview header and its list open, naming the cell and the problem — The badge next to Fields counts the problems. Its list names the cell and what is wrong.

Animations and symbol effects run in the preview.

10. Send a test#

Press Send test in the preview header. Herald shows the banner on your screen through the normal delivery path, with the preview data. You can send before you save. The Designer writes the unsaved draft to a scratch template called _designer-test and sends that. The status line reads Sent test banner. If the template has an error, the button reports Fix first and the first problem instead.

To send a one-off notification of your own with your own title, body and buttons, switch the mode bar to Quick send.

The Quick send form with the Notification, Content, Buttons and Behavior sections beside a Light and Dark preview — Quick send: fill in a notification, check the preview and press Send Now. Send Now stays off until a Title is entered.

Every control of the form, Copy as… and Save as Template… are described in Quick send. The Look section holds Design Template…, which returns to design mode for the same app.

11. Add an action#

An action is a button on the banner. It can open a link, run a script, a shell command or an Apple Shortcut, call back the app, or snooze. Actions are the subject of Actions. This step shows how to add one in the Designer.

Open the Actions tab. Under Add your own, press the kind you want, for example Open link. The palette's Add action… menu offers the same kinds, plus Dismiss.
The Add action form opens.

The Add action form with Label, Shows, Does this and Button style, above the settings for an Apple Shortcut — The Add action form. Shows, here set to Icon and text, chooses text, icon and text, or icon only. The symbol section is lower in the form.

Type the Label. The button beside it inserts a field, so a label can be Open {bid}.
Choose what the button Shows: Text, Icon and text or Icon only. An icon button gets a default symbol that you can change in the Symbol section lower in the form.
Check Does this and fill in the details for that kind, for example the address under Link.
Pick a Button style: Normal, Prominent, Destructive or Quiet. A destructive button asks for confirmation before it runs.
Press Save. The form refuses to save until it is complete and names what is missing. The button's id comes from the label. Advanced shows it, and rules and button cells use it to refer to the button.
Place the button on the banner. Add an Actions cell to show every button, or a Button cell, set Runs to Listed and choose the action. An action is drawn in one cell only.

A command, a script or a Shortcut that you add runs only after the user confirms it once for the template.

Add a follow-up#

The Follow-up block of the Actions tab, under Buttons, runs one action when a banner goes unanswered. It is the way to forward a missed banner to your phone, an email or a channel.

Switch on If not dismissed. The After and Run controls appear under it.
Under After, type a number and choose a unit: seconds, minutes or hours. The range is 5 seconds to 7 days. A value outside the range shows a warning under the field.
Open the Run menu and choose one of the banner's actions, or New Shortcut action... to add a Shortcut that belongs to the follow-up alone. The menu then shows the action you chose.
When the issuer already declares a follow-up, the block starts with From the issuer: LABEL after DURATION. Use its switch to turn it off for this template.

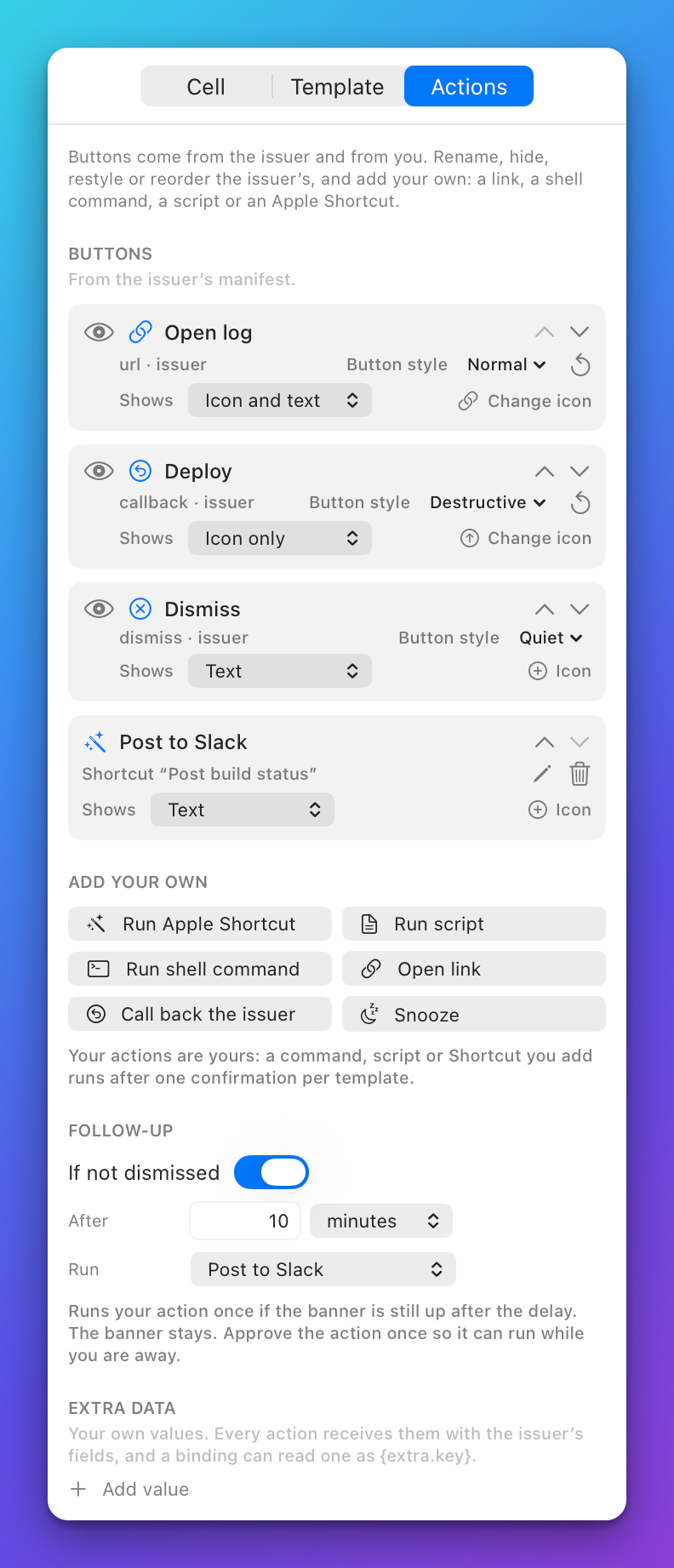

The Follow-up block of the Actions tab in the Designer with the If not dismissed switch on, After set to 10 minutes and the Run control — The Follow-up block when you add your own follow-up.

The Follow-up block of the Actions tab showing a follow-up that the issuer declares, with its own switch above the template's If not dismissed switch — When the issuer declares a follow-up, the block shows it first with its own switch. Turn it off to stop it for this template.

Only a Shortcut, a script, a command or a callback can follow up, so the menu offers no link or reply actions.

The first time a follow-up that runs code fires, nothing runs yet: the banner shows the question, and the History row reads Follow-up waiting for approval. Answer Run once or Always allow this template, and later follow-ups run while you are away. A follow-up whose action comes from the issuer follows the app's Allow this app to run commands, scripts and Shortcuts switch instead. Forward a notification you missed goes through it with a Shortcut, and Follow-ups is the reference.

The look of each button#

Every row on the Actions tab has its own Shows menu and an Icon button. They apply to that button alone, not to the rest of the row:

The panel that Change icon opens for one action. Place sets the icon before the label, after it, or alone.

Text shows the label.
Icon and text shows an icon beside the label. Change icon opens the Symbol panel for it.
Icon only shows just the icon. The label becomes optional: in the form it is used only as the tooltip, so an icon-only action needs no label.

For a button the issuer sent, you cannot edit the button itself, so Herald stores your icon choice as an action rule: an entry in the template's actionRules that matches the button's id and sets its symbol. The reset arrow on the row removes the rule and restores the issuer's own look. For a button you added, the symbol is saved with the button. The rule fields are in Actions.

The Shows choice of an Actions cell, Both, Issuer or Mine, is a different setting. It decides whose buttons the cell lists.

12. Save the template#

Press Save in the preview header, or ⌘S. The editor bar changes from Not saved yet or Unsaved changes to the app name. To make this the template the app's notifications use when they name none, press Set as issuer default in the left column.

Keyboard shortcuts:

Shortcut	Does
⌘S	Save.
⌘Z and ⇧⌘Z	Undo and redo.
⌘D	Duplicate the selected component.
⌘⌫	Delete the selected component.
⌘+, ⌘− and ⌘0	Zoom the pane under the pointer in, out and back to 100%.

Check that it works#

Send a real notification that names the template, from your app or with the CLI. The banner should match the preview.

shell

herald notify --app example.bidbot --title "Bid accepted" --template bid-won

Or press Send test again. If you closed the window with unsaved changes, Herald asks whether to save.

If it does not work#

Symptom	Cause	Fix
Send test is dimmed.	No app is chosen, or a test is already being sent.	Choose the app in Issuer and wait for the first test to finish.
Send test says "Fix first".	The template has an error.	Open the problems button, click the problem and fix that cell.
Save is dimmed or refuses the name.	The name is empty, starts with `.` or `_`, or contains `/` or `:`. Or another template already has the name.	Choose another name in the Template tab.
A cell will not grow.	The slots around it are taken or it is on the grid edge.	Delete or move the neighbouring cell, or add a row or column.
The banner has no buttons.	The template has no Actions or Button cell, or the buttons are hidden.	Add an Actions cell. On the Actions tab, show hidden buttons with the eye icon.
A field shows blank in the preview.	The field is unticked in Fields, or Sample has no value for it.	Press All present, or switch to Last real.
The icon does not appear.	The symbol name is not an SF Symbol on this Mac.	Pick the symbol in the browser instead of typing it.
The Template tab says "Changed on disk while you were editing."	The template file changed outside the Designer.	Press Reload in the Template tab, or keep editing and save over it.

Templates: what templates are, how a notification picks one, and sharing bundles.
Grid, cells and layout: the fields behind the grid and cell controls.
Bindings and tokens: the fields in the palette and where their values come from.
Components: the properties in the Component section.
Symbols: symbol names, weights, modes and effects.
Actions: the kinds of buttons and what they run.
The app: the menu, History and Settings.
