Templates

A template is a saved banner design for one app. It decides where the title, the picture, the count and the buttons go, and what happens when some of that data is missing. This guide explains what templates are for, how a notification picks one, and how to build one step by step, preview it and share it. It is for app developers and for agents that design banners. For every field of the JSON, see Grid, cells and layout.

What a template is and why you want one#

Without a template, Herald draws every notification with a built-in layout: an optional picture, a title, a subtitle, a body and the buttons. That is enough for plain messages. A template lets one app give each kind of event its own look, for example a bid that was won, a bid that was lost and a deadline that is close, without sending layout details in every notification.

A template has three parts:

• A layout. A grid of rows and columns, with components such as text, images, badges and buttons placed in its cells. See Grid, cells and layout.
• Bindings. Each component reads data through {token} placeholders, so the same template shows the right values for every notification. See Bindings and tokens.
• Defaults and rules. Default sound and behaviour, extra values, and rules that hide, relabel or add buttons. See Action rules.

A template is stored on the Mac, one file per template, and a notification asks for it by name:

{"app": "example.bidbot", "title": "Bid accepted", "template": "bid-won", "client": "Acme Corp"}

You can write templates three ways: in the Designer, with PUT /v1/templates, or with the MCP tool put_template. All three store the same JSON and run the same validation.

The built-in layouts#

Four layouts exist without being saved. Each is a grid template, 380 points wide. A notification that names no template is drawn with one of them. Pick one with the notification's layout field, or name one directly, for example "template": "builtin.hero".

All four draw the title, the subtitle, the body, the time, the app icon, a close button and the action row. They collapse what is missing: without a picture there is no picture column, without a subtitle no subtitle row, without buttons no button row. A notification can tune them with fields that show or hide parts, limit the body lines and set the accent colour. Those fields are in the Notifications API.

The built-ins are also starting points. The MCP tool get_template returns any of them as editable JSON, and in the Designer New offers a blank 3 by 4 grid or a copy of each layout. Names that start with builtin. are reserved, so save your copy under your own name.

How a notification picks its template#

Herald chooses the template when the notification arrives:

1. If the notification has a template, Herald looks for a saved template of that name for the same app. A builtin. name selects the built-in template.
2. If the notification names none, and the app's manifest has a defaultTemplate that exists as a saved template, Herald uses that. The Designer's Set as issuer default button sets it.
3. Otherwise Herald uses a built-in layout, chosen by the notification's layout field, or imageLeft.

Names are matched per app. A template saved for example.bidbot is never used for another app.

Build a template step by step#

This walk-through builds a banner for BidBot's "Bid accepted" event. BidBot sends these fields: title, bid, amount, client and image. The steps show the cells you add. The complete template is at the end of the section.

Step 1: a grid and a title#

Start with a grid: 3 rows and 3 columns. The first column is a fixed 72 points for a picture, the middle column takes the leftover width, and the last column fits its content. Add one cell that shows the title.

{
  "name": "bid-won",
  "app": "example.bidbot",
  "grid": {
    "rows": 3, "cols": 3,
    "rowSizes": ["auto", "auto", "auto"],
    "colSizes": [72, "fill", "auto"],
    "gap": 8, "padding": 14, "width": 400
  },
  "cells": [
    {"id": "title", "row": 0, "col": 1,
     "component": {"type": "text", "binding": "{title}", "style": "title", "maxLines": 2}}
  ]
}

Rows and columns are counted from 0, so "row": 0, "col": 1 is the top row, middle column. The template is valid at this point and shows only the title.

Step 2: a picture and a second line#

Add the picture in the first column. It spans two rows, so it stands beside both text lines. Add the bid reference under the title. It spans the middle and last columns.

{"id": "img", "row": 0, "col": 0, "rowSpan": 2,
 "component": {"type": "image", "binding": "{image}", "fit": "cover", "cornerRadius": 10}}

{"id": "bid", "row": 1, "col": 1, "colSpan": 2,
 "component": {"type": "text", "binding": "{bid}", "style": "subtitle", "maxLines": 1}}

Step 3: an amount badge#

Put the amount in the last column of the top row, aligned to the top right corner of its cell.

{"id": "amount", "row": 0, "col": 2, "align": "topTrailing",
 "component": {"type": "badge", "binding": "{amount}", "color": "#2E7D32"}}

Step 4: the buttons#

Add the action row at the bottom, under the text columns. merged shows the app's own buttons and the ones you add with rules. maxVisible puts any more behind a +N menu.

{"id": "buttons", "row": 2, "col": 1, "colSpan": 2,
 "component": {"type": "actions", "source": "merged", "layout": "row", "maxVisible": 3}}

The button row does not span column 0. That matters in the next step.

Step 5: decide what happens when data is missing#

BidBot does not always send an image or an amount. By default (collapseEmpty is true) an empty component disappears and a row or column with nothing left closes up. Without an image, the 72 point column and its gap vanish and the text starts at the left edge. This is what you want for the picture. For the amount badge you might prefer a stable layout, so you set emptyBehavior on that one cell to keep:

{"id": "amount", "row": 0, "col": 2, "align": "topTrailing",
 "component": {"type": "badge", "binding": "{amount}", "color": "#2E7D32", "emptyBehavior": "keep"}}

The next section describes the rules in full.

The finished template#

Add a default sound and an accentColor, and the template is complete:

{
  "name": "bid-won",
  "app": "example.bidbot",
  "collapseEmpty": true,
  "accentColor": "#2E7D32",
  "sound": "Glass",
  "grid": {
    "rows": 3, "cols": 3,
    "rowSizes": ["auto", "auto", "auto"],
    "colSizes": [72, "fill", "auto"],
    "gap": 8, "padding": 14, "width": 400
  },
  "cells": [
    {"id": "img", "row": 0, "col": 0, "rowSpan": 2,
     "component": {"type": "image", "binding": "{image}", "fit": "cover", "cornerRadius": 10}},
    {"id": "title", "row": 0, "col": 1,
     "component": {"type": "text", "binding": "{title}", "style": "title", "maxLines": 2}},
    {"id": "amount", "row": 0, "col": 2, "align": "topTrailing",
     "component": {"type": "badge", "binding": "{amount}", "color": "#2E7D32", "emptyBehavior": "keep"}},
    {"id": "bid", "row": 1, "col": 1, "colSpan": 2,
     "component": {"type": "text", "binding": "{bid}", "style": "subtitle", "maxLines": 1}},
    {"id": "buttons", "row": 2, "col": 1, "colSpan": 2,
     "component": {"type": "actions", "source": "merged", "layout": "row", "maxVisible": 3}}
  ]
}

Save, preview and use it#

Save the JSON as bid-won.json. The shell examples use $HERALD and $TOKEN, defined in Connect. Storing a template validates it first. An error is reported with the cell id and the property path.

curl -s -X PUT "$HERALD/v1/templates" \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d @bid-won.json

{"ok": true}

Render it before you send anything. The reply is a PNG. Fields you leave out of data show how the banner collapses:

curl -s -X POST "$HERALD/v1/preview" \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"template":"bid-won","app":"example.bidbot","appearance":"dark",
       "data":{"title":"Bid accepted","bid":"BID-4021 Brand refresh"}}' -o preview.png

Then use it from a notification:

curl -s -X POST "$HERALD/v1/notify" \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"app":"example.bidbot","title":"Bid accepted","bid":"BID-4021 Brand refresh",
       "amount":"$4,200","template":"bid-won"}'

Collapse semantics#

Notifications do not always carry every field. A template decides what a missing field does to the layout: the space it would have used can close up, or it can stay as a blank. This section explains the rules completely.

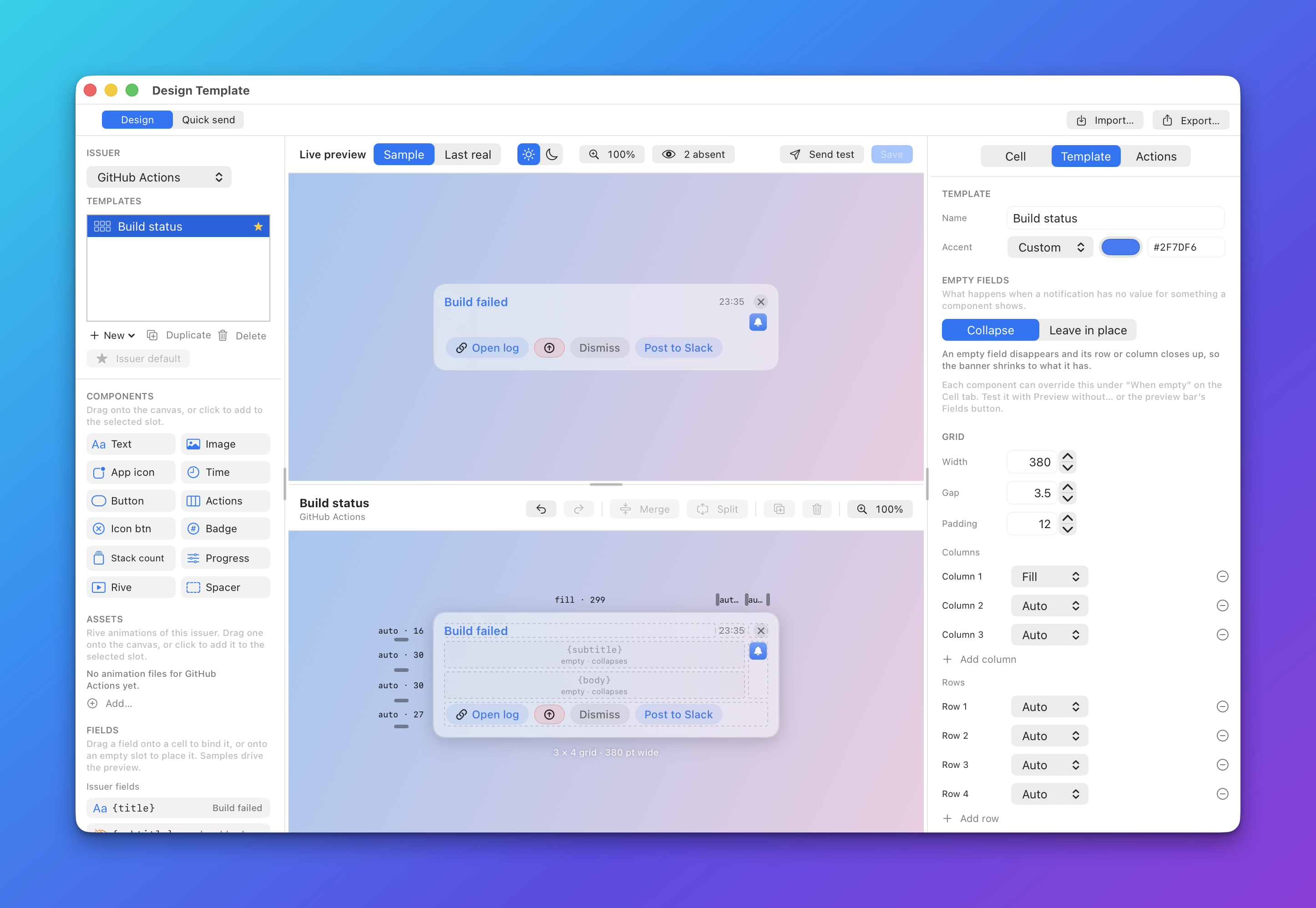

The Fields button reads 2 absent, so the subtitle and body rows close up in the preview. The Template tab on the right holds the Empty fields setting, here set to Collapse.

Empty components#

A component is empty when it has nothing to show for this notification. For a bound component that means every token in its binding is absent. A binding with no token is plain text and is empty only when it is blank. The details of tokens are in Bindings and tokens.

Collapse or keep#

When a component is empty, one of two things happens. The choice is made at two levels:

1. The template default, collapseEmpty. true means collapse, false means keep. The default is true.
2. The component, emptyBehavior: collapse or keep. When set, it overrides the template default for that component only.

An empty component that collapses is not drawn. An empty component that keeps is drawn as blank, and its cell holds its space so the layout does not move.

{"id": "subject", "row": 1, "col": 1, "colSpan": 2,
 "component": {"type": "text", "binding": "{subject}", "style": "subtitle", "emptyBehavior": "collapse"}}

In the Designer, the Template tab has Empty fields with Collapse and Leave in place. Each component's Cell tab has When empty with Template, Collapse and Keep space.

Rows and columns#

Collapsing a cell can empty a whole row or column. Herald decides this for each row and column:

1. A cell is live when it is not collapsed. A cell that spans several tracks counts for every track it covers.
2. A row or column that has at least one live cell stays at its normal size.
3. A row or column that cells cover, but none of them live, collapses to zero size, and its gap disappears.
4. A row or column that no cell covers at all collapses only when collapseEmpty is true. With false it keeps its size.

So emptyBehavior: "keep" on one component keeps the tracks that component covers alive for every notification, even when the template collapses. And collapseEmpty: false keeps every track, including tracks no cell uses, so every banner has the same shape.

Worked example#

This template has 3 rows and 3 columns, and collapseEmpty is true. The picture covers rows 0 and 1 of column 0. The title is at row 0, column 1. The amount badge is at row 0, column 2 and is set to keep. The bid text covers row 1, columns 1 and 2. The buttons cover row 2, columns 1 and 2.

{
  "name": "bid-won",
  "app": "example.bidbot",
  "collapseEmpty": true,
  "grid": {
    "rows": 3, "cols": 3,
    "rowSizes": ["auto", "auto", "auto"],
    "colSizes": [72, "fill", "auto"],
    "gap": 8, "padding": 14, "width": 400
  },
  "cells": [
    {"id": "img", "row": 0, "col": 0, "rowSpan": 2,
     "component": {"type": "image", "binding": "{image}", "fit": "cover"}},
    {"id": "title", "row": 0, "col": 1,
     "component": {"type": "text", "binding": "{title}", "style": "title"}},
    {"id": "amount", "row": 0, "col": 2,
     "component": {"type": "badge", "binding": "{amount}", "emptyBehavior": "keep"}},
    {"id": "bid", "row": 1, "col": 1, "colSpan": 2,
     "component": {"type": "text", "binding": "{bid}", "style": "subtitle"}},
    {"id": "buttons", "row": 2, "col": 1, "colSpan": 2,
     "component": {"type": "actions", "source": "merged"}}
  ]
}

Without "emptyBehavior": "keep" on the badge, a missing amount would also collapse the badge cell. Column 2 would still stay whenever the bid text or the buttons are present, because they span it.

With collapseEmpty set to false and no emptyBehavior anywhere, every banner has the shape of the first row of the table: nothing moves, and missing fields leave blanks. A grid with a fourth row that no cell covers behaves like this: with collapseEmpty: true the row collapses and leaves no stray gap. With false it stays at its size.

Buttons and the confirmation question#

While a banner asks an inline confirmation, such as "Run Delete?", every actions and button cell is treated as empty and collapsed, whatever its emptyBehavior. The question takes the place of the row. Icon buttons stay, because the user can always close the banner.

Testing it#

In the Designer, the preview bar's Fields button and each cell's Preview without checkbox mark fields as absent so you can watch what collapses. Over HTTP, leave keys out of data in POST /v1/preview.

Preview a template#

Three tools render the real banner, with the same collapsing and layout a delivery uses:

The data argument takes one of three things:

• A notification-shaped object.
• "sample", to use the manifest's sample values.
• "last", for the newest real notification.

Add stackCount to see the banner as the top of a stack. Layout is the same in light and dark, so check both mainly for colours.

Share a template as a bundle#

A bundle is one file with the extension .heraldtemplate. It is a zip archive that holds the template and the Rive animations it plays, so a template with animations moves between Macs in one piece.

To export in the Designer, press Export… in the bar at the top, choose where to save, and the file is written. To import, press Import…, or drop a .heraldtemplate file on the Designer window. Herald tells you which app the template is for and which animations it carries. If the bundle is for another app, a checkbox imports it for the app you are designing instead. If a template with that name exists you choose Keep Both, which saves the import as name 2, or Replace.

Over HTTP and MCP:

• Export: GET /v1/templates/export, or the MCP tool export_template_bundle.
• Import: POST /v1/templates/import, or the MCP tool import_template_bundle.

What a bundle does and does not carry:

• Rive files go in the bundle. On import Herald copies them into the app's assets folder. A file that is already there with the same content is reused. A different file with the same name is saved under another name, and the template is updated to match.
• A fixed picture chosen in an image component stays on the original Mac. The bundle keeps the path, so choose the picture again after importing elsewhere.
• Script files and Apple Shortcuts are not in the bundle. Herald warns about each one on export. The Shortcut must exist on the other Mac, and a script must be in its scripts folder.
• A bundle is untrusted input. Herald validates the template, caps the number and size of entries before unpacking, and ignores anything that is not the fixed layout above. A bundle may hold at most 32 animation files of 10 MB each and 64 MB in total, and template.json may be at most 2 MB.
