Actions row

The actions component draws the banner's action buttons as one row: every action in the resolved list, or a chosen subset. The Designer calls it Actions. Use it when a banner has more than one action and you want Herald to lay the buttons out for you, wrapping onto more lines, hiding the overflow behind a "+N" menu, or aligning them to one side. The row also holds the snooze clock and the Add to Reminders button when a notification asks for them.

To draw one action in a place of its own, use button or iconButton. An action is drawn in at most one cell of a template, so one list can be split across several cells. See One action, one cell.

{"type":"actions"}

This lists every resolved action, merged from the issuer and the template, and wraps the buttons onto more lines when they do not fit.

Realistic example

A title and a full-width action row. The template's rules relabel one issuer action, give it an icon, hide another, and add a Shortcut of its own. The row shows at most four buttons.

{"name":"actions-demo","app":"example.bidbot","layoutVersion":2,"collapseEmpty":true,
 "grid":{"rows":2,"cols":1,"rowSizes":["auto","auto"],"colSizes":["fill"],"gap":8,"padding":12,"width":380},
 "cells":[
  {"id":"title","row":0,"col":0,"component":{"type":"text","binding":"{title}","style":"title"}},
  {"id":"acts","row":1,"col":0,"component":{"type":"actions","source":"merged","layout":"wrap","maxVisible":4}}],
 "actionRules":[
  {"match":"markRead","relabel":"Mark as read","position":0},
  {"match":"markRead","symbol":"checkmark"},
  {"match":"archive","hide":true},
  {"add":{"id":"followup","label":"Follow up","kind":"shortcut","shortcut":"Create follow-up","input":"{title}\n{url}"}}]}

The row of capsule buttons under the text is an actions component.

Properties

What the row contains#

The row holds, in this order:

1. The resolved actions it is assigned, as capsule buttons 24 points high.
2. A "+N" menu with the actions that did not fit or that maxVisible cut, when there are any.
3. The Add to Reminders button, when the notification has a reminder and source is not template. It shows its working, added and failed states.

A snooze action without snoozeMinutes is not a button. It is Herald's snooze menu, drawn as a clock (the ⏰ symbol) pinned to the trailing edge of the row.

• Its choices are 5 minutes, 15 minutes, 1 hour and Tomorrow 9:00.
• A notification with "snooze": true adds this action.
• A rule can add it too with {"add":{"id":"snooze","label":"Snooze","kind":"snooze"}}.

The sample data of a preview stands in for an app that names every action its manifest declares. A real notification shows only the actions it sends.

Which actions#

The resolved list has two kinds of action. The issuer's are the buttons the sending app sends. The template's are the ones its actionRules add. source filters them:

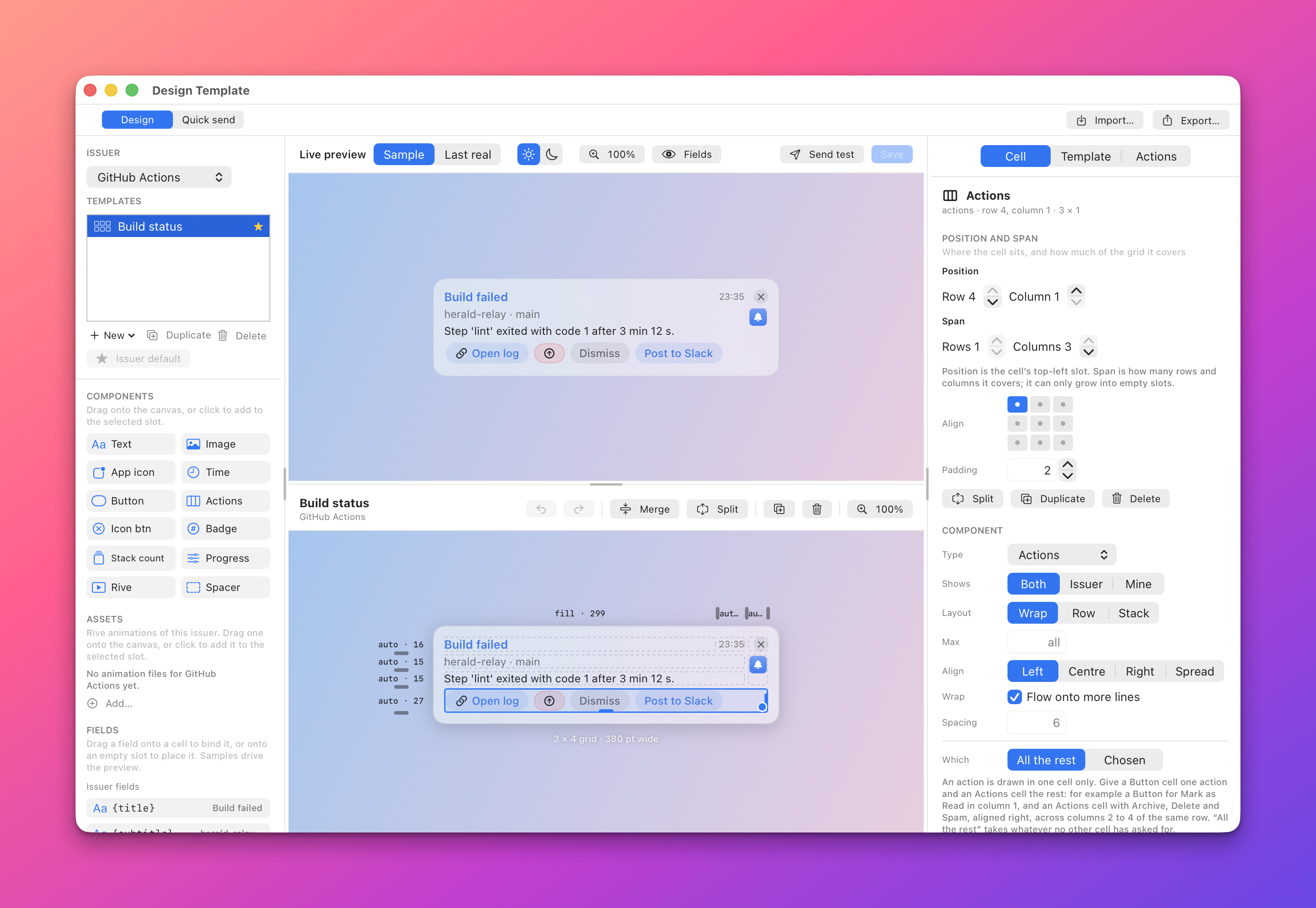

The Cell tab of an Actions cell. Shows is the source filter and Which picks all the rest or chosen actions.

include narrows the row further to the ids you list, for example ["archive","delete","spam"]. An id that no action has shows nothing, and the validator warns about it when a manifest is available. An id whose action source filters out shows nothing either.

Layouts#

The wrap property decides whether a row or wrap layout flows onto more lines. It is ignored for stack.

• "layout":"row" with "wrap":true flows onto more lines.
• "layout":"wrap" with "wrap":false stays on one line.

Alignment, wrapping and spacing#

align places the buttons across the width of the cell. When it is omitted, the horizontal part of the cell's own align is used, so a cell aligned topTrailing puts the buttons against the trailing edge.

When the row wraps, align applies to each line. The snooze clock is always on the trailing edge. A row with an align other than leading fills the width of its cell, so the buttons can reach the trailing edge or the middle.

In the Designer these are the Align control (Left, Centre, Right, Spread), the Wrap checkbox (Flow onto more lines) and the Spacing field. The Layout control offers Wrap, Row and Stack, and Max sets maxVisible. The Shows control of an Actions cell, with Both, Issuer and Mine, sets source. It is not the per-action Shows control described below.

One action, one cell#

An action is drawn in at most one cell of a template. Cells are visited from top to bottom and from left to right:

1. A button bound to an action id (actionRef) claims that action.
2. An actions cell with include claims the ids it lists, in that order.
3. An actions cell with no include shows every action of its source that nobody claimed.

When two cells ask for the same action, the first one in reading order draws it and the other shows nothing for it. A button in that position is empty. The validator reports a warning that names both cells. In the Designer the Which control of an Actions cell has the choices All the rest and Chosen, and a chosen action that another cell already draws is marked "Already drawn in cell".

This template splits the list by hand. It puts the app icon in the first column, a button for Mark as Read under it, and Archive, Delete and Spam right-aligned in one merged cell across the other columns of the last row:

{"name":"email-split","app":"example.bidbot","layoutVersion":2,"collapseEmpty":true,
 "grid":{"rows":4,"cols":4,"rowSizes":["auto","auto","auto","auto"],"colSizes":[104,"fill","fill","fill"],"gap":8,"padding":14,"width":400},
 "cells":[
  {"id":"icon","row":0,"col":0,"rowSpan":3,"component":{"type":"issuerIcon","size":56,"shape":"rounded"}},
  {"id":"title","row":0,"col":1,"colSpan":3,"component":{"type":"text","binding":"{title}","style":"title","maxLines":1}},
  {"id":"sender","row":1,"col":1,"colSpan":3,"component":{"type":"text","binding":"{sender}","style":"subtitle","maxLines":1}},
  {"id":"subject","row":2,"col":1,"colSpan":3,"component":{"type":"text","binding":"{subject}","style":"caption","maxLines":1}},
  {"id":"read","row":3,"col":0,"component":{"type":"button","actionRef":"markRead"}},
  {"id":"more","row":3,"col":1,"colSpan":3,"component":{"type":"actions","include":["archive","delete","spam"],"align":"trailing","wrap":false}}]}

The look of each button#

Each button draws its own action.

• Its label may contain {tokens}, which are filled from the notification's fields.
• A label that fills to nothing shows the action's id.
• A label over 40 characters is cut, with the full text in the tooltip.

The button's colours follow the action's style: normal, prominent, destructive or cancel. Button style shows each look.

What a button shows is chosen for each action on its own: its text, an icon with its text, or an icon alone. The choice is the action's symbol:

• No symbol means text only.
• A symbol with the default placement means icon and text. "placement":"trailing" puts the icon after the text.
• A symbol with "placement":"only" means icon only, and the text is not drawn.

Which symbol an action shows is decided in this order:

1. The action's own symbol, which a symbol in an actionRules entry replaces.
2. The row's symbol, when the action has none. The row's symbol is therefore a default for buttons that have none.

An icon-only action keeps its label as the tooltip and the name VoiceOver reads, and it needs no label of its own in the Designer.

To give an action from the issuer an icon, add a rule. This one gives Mark as Read an icon alone and leaves the others as they are:

{"actionRules":[{"match":"markRead","symbol":{"name":"checkmark","placement":"only"}}]}

In the Designer, open the Actions tab of the inspector. Every action in the Buttons list has two controls:

• A Shows menu with Text, Icon and text and Icon only.
• An Icon button (Change icon once there is one) that opens a panel to pick the symbol, its weight and its colours.

A change to an issuer action is saved as a rule, so the issuer's action itself is never edited. A Shows choice for an action you added changes that action.

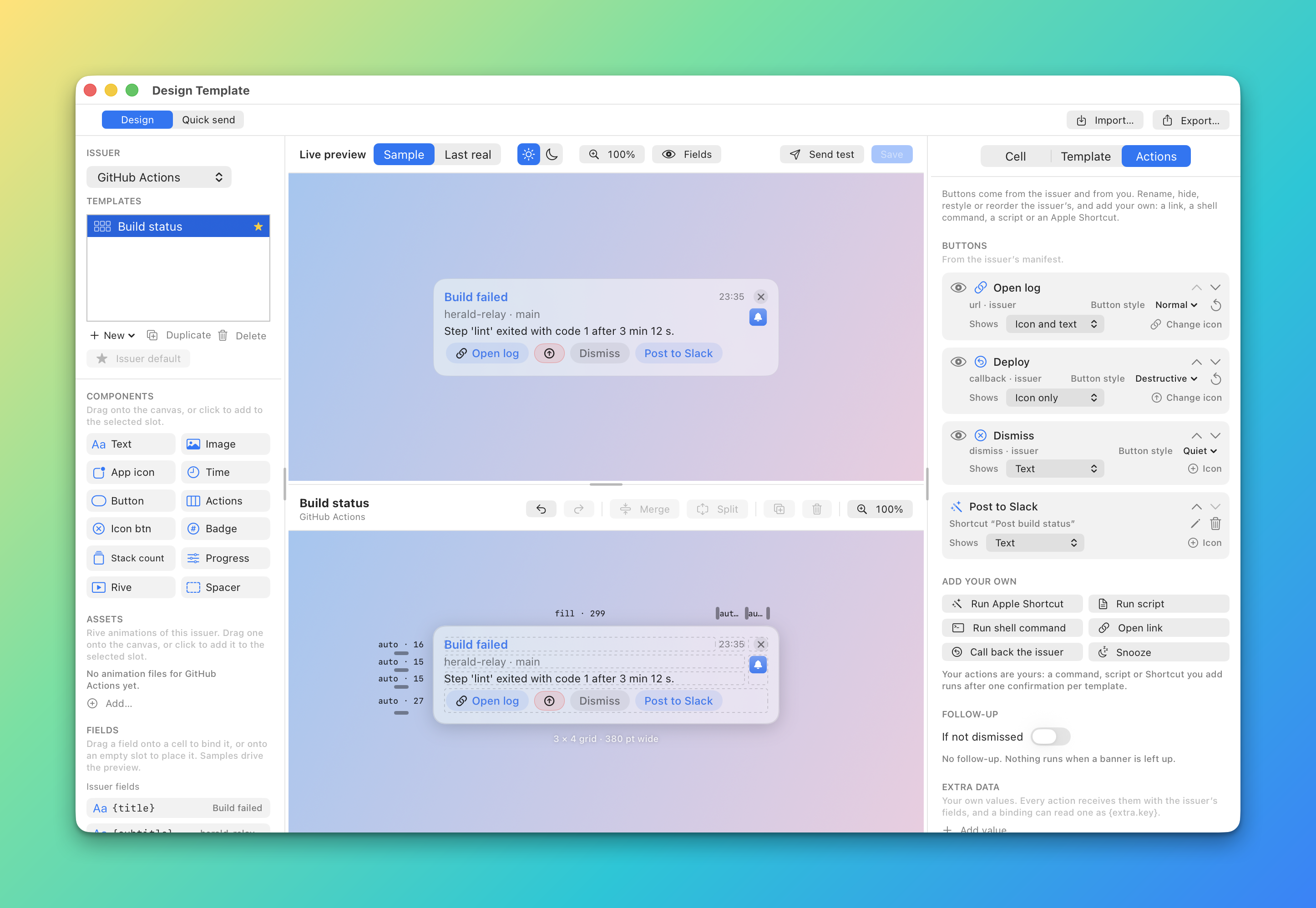

Each action in the Buttons list has its own Shows menu: Text, Icon and text, or Icon only.

The Icon button opens a panel for that action's symbol:

The panel that Change icon opens: the symbol name, weight, scale, where it sits, its mode, colour and effect.

The picker beside Name in that panel opens the symbol browser:

The symbol browser opens from the Icon button and lists SF Symbols by name and category.

Sizing and the overflow menu#

The row fills the width of its cell. Its height is one button, which is 24 points. A wrap or stack row grows by one button for each extra line. A kept empty row holds the height of one button.

The "+N" menu lists the actions that are not shown as buttons. Its entries run their actions as the buttons would, and a destructive one is marked as destructive. In a static preview the menu and the snooze clock are drawn as plain labels.

When the buttons do not fit, the row shows as many as it can and a +N pill for the rest.

Empty rows#

The row is empty when its assigned actions are empty. A notification with a reminder keeps the row alive, because the Add to Reminders button lives in it, unless source is template. While an inline confirmation is pending, the confirmation replaces the row, as described in Components.

Which action runs#

Each button runs its action with the origin the action came from, issuer or template. The gates and confirmations are described in Confirmation gates.

Common mistakes#
