What every component shares

Name: Herald
Author: IVG Design

A component is one piece of a banner: a line of text, a picture, a button, a progress bar. A template builds a banner by placing components in the cells of a grid, and each cell holds exactly one. This page explains what every component has in common. The twelve component pages that follow it list the properties each one accepts. It is for anyone who writes a template by hand, through the API or through an agent. The Designer writes the same JSON for you.

What a component is#

On the wire a component is one flat JSON object. Its type says which kind it is, and the other keys are that kind's properties. A component sits inside a cell, and the cell decides where it goes. This is a complete cell holding a text component:

JSON

{"id":"title","row":0,"col":1,"colSpan":2,"align":"topLeading",
 "component":{"type":"text","binding":"{title}","style":"title"}}

The cell's own fields and the grid around them are described in The grid, cells and layout. This page covers what a component adds on top of that.

In the Designer you add a component by dragging it from the palette onto a cell, then edit its properties in the inspector. The palette uses short names that differ a little from the type values.

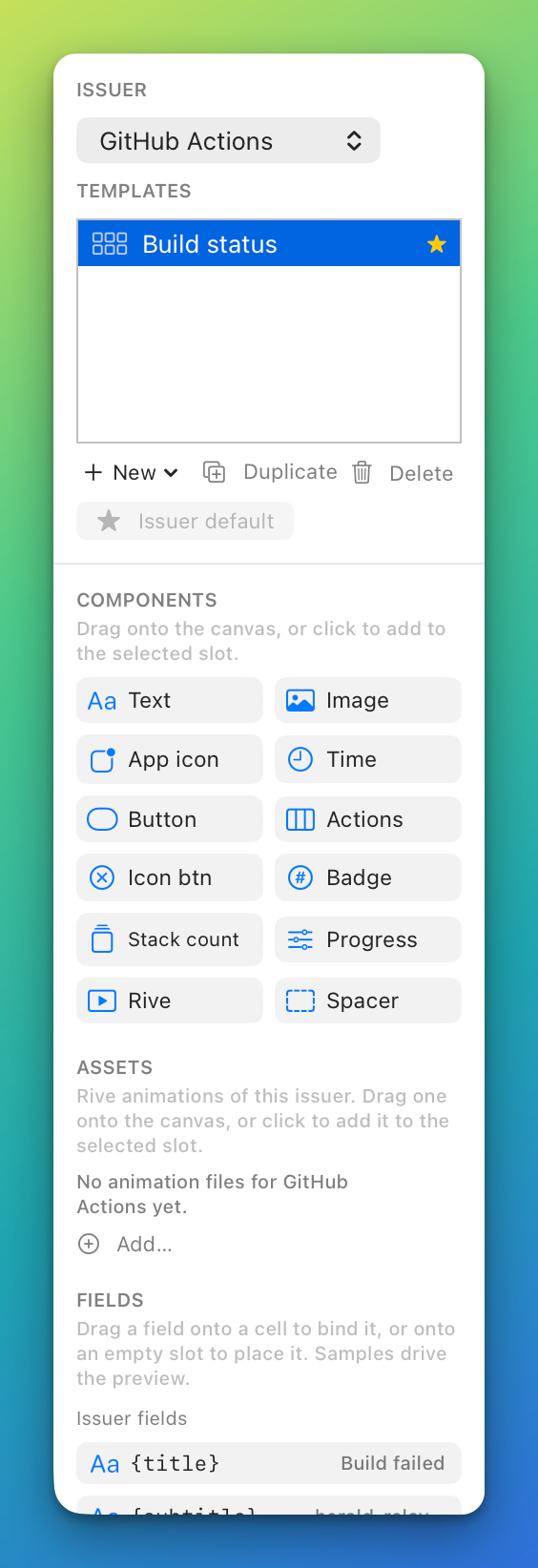

The left pane of the Designer with the Issuer menu, the Templates list and the Components palette of twelve chips — The palette lists the twelve components. Drag one onto a cell of the canvas.

Select a cell and the inspector on the right shows its properties:

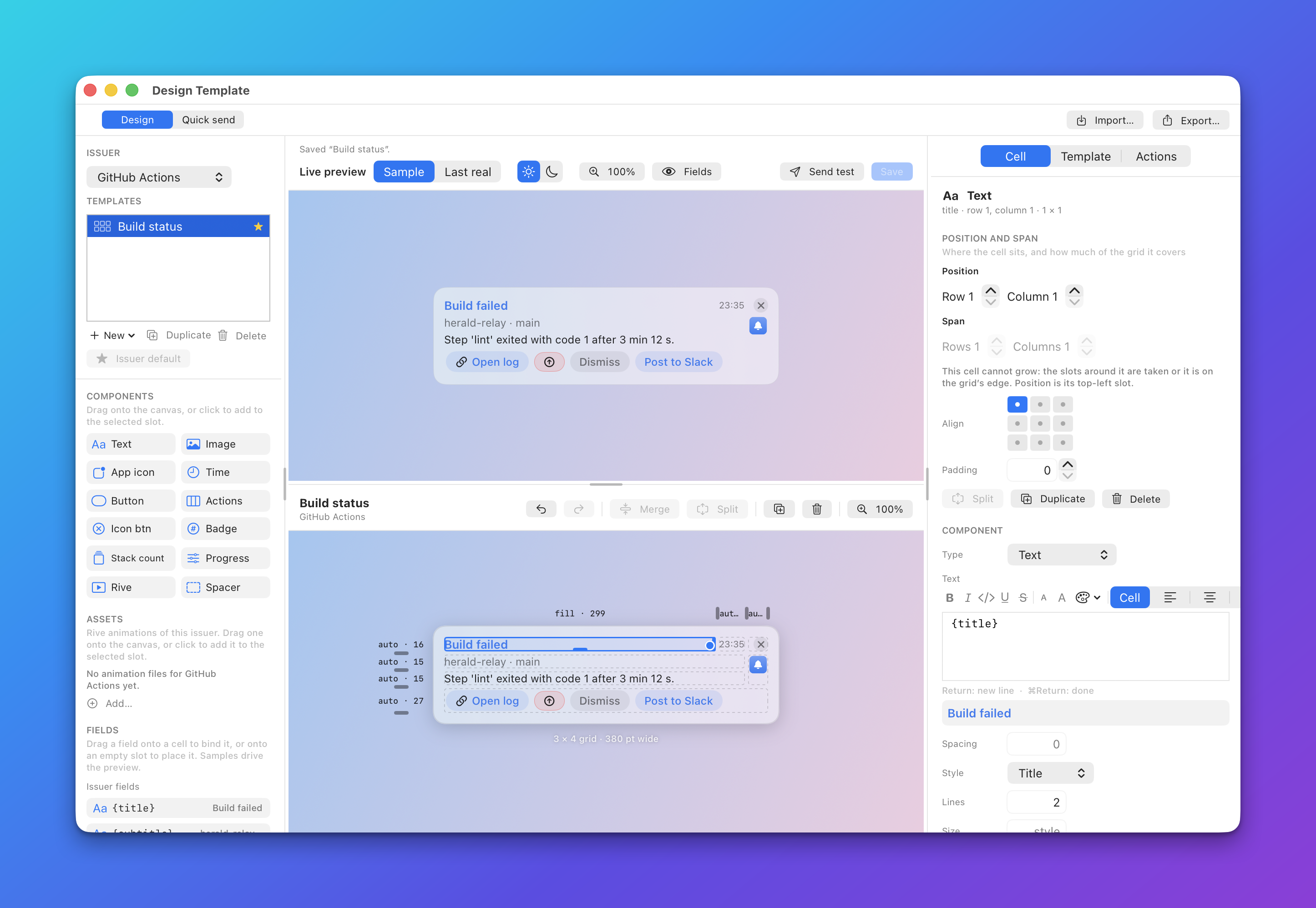

The Designer with a title text cell selected and its properties in the Cell tab of the inspector — Selecting a cell shows the properties of its component in the inspector on the right.

The components#

`type`	Designer name	What it draws
`text`	Text	Bound text in one of five styles, with optional rich text and Markdown links.
`image`	Image	A picture from a field: a file path, a `data:` URI or an https URL.
`issuerIcon`	App icon	The icon of the app that sent the notification, round or rounded.
`timestamp`	Time	A date field or the delivery time, as a clock time or "3 min. ago".
`button`	Button	One action as a capsule button.
`actions`	Actions	Every action of the banner as a row of buttons, with an overflow menu.
`iconButton`	Icon btn	A round button with an SF Symbol: close, snooze, mark done.
`badge`	Badge	A small pill holding a value, such as an unread count.
`stackBadge`	Stack count	The pill that counts the notifications folded into a stack.
`progress`	Progress	A thin progress bar.
`rive`	Rive	A Rive animation driven by fields and the pointer.
`spacer`	Spacer	Empty space that fills its cell.

GET /v1/components and the MCP tool component_schema return the machine-readable form of these pages. See Templates API and MCP template tools.

What every component shares#

Binding to fields#

Most components show something that changes from one notification to the next. They do that with a binding: a piece of text with {token} placeholders, such as "{title}" or "{count} new from {sender}".

Herald replaces each token with the value of the field of the same name from the notification, the manifest or the template's extra values.
A token is made of letters, digits, _, . and -.
Text in an action's label, url and input takes tokens too.
A component whose properties are fixed, such as spacer or issuerIcon, has no binding.

Where values come from is described in Bindings and tokens.

Empty components and `emptyBehavior`#

A component that has tokens and finds every one of them absent or blank has nothing to show. It is empty. What happens next is the choice of emptyBehavior, which every component except spacer accepts:

Value	What happens to an empty component
`collapse`	It disappears, and a row or column left with nothing in it shrinks to zero size, gap included.
`keep`	It stays as a blank cell that holds its size, so banners from one app keep one shape.
omitted	The template's `collapseEmpty` decides. It is `true` by default, which means `collapse`.

Each component page says what makes that component empty. How rows and columns collapse is described in the collapse planner.

A question that a banner asks inline, such as "Run this command?", takes the place of the action buttons. While it is shown, every actions and button cell counts as collapsed whatever its emptyBehavior says. iconButton cells stay, so the banner can always be dismissed.

Alignment inside the cell#

A cell can be larger than its component. The cell's align places the component inside it. It has nine values:

text

topLeading     top      topTrailing
leading        center   trailing
bottomLeading  bottom   bottomTrailing

The default is topLeading. In the Designer align is a 3 by 3 pad in the inspector. Two details matter:

The horizontal part also sets how the lines of a text component are aligned when the component has no alignment of its own.
A component that fills its cell's width (image, progress, actions) is affected only in the vertical direction.

Colours#

Colour properties (color, textColor) take one of two kinds of value:

A hex colour: #RGB, #RGBA, #RRGGBB or #RRGGBBAA.
A keyword: accent (the template's accentColor, else the system accent), primary or secondary.

Keywords follow the system appearance. Hex colours on text, icons and progress bars are adjusted until they are legible on the current light or dark appearance, so one hex value works in both. Badge pills are the exception and are drawn exactly as written. Nothing in a template depends on the appearance, so you do not write separate light and dark versions.

Symbols#

Five components can carry an SF Symbol: button, actions, iconButton, issuerIcon and badge. A symbol is either a plain name such as "bell.badge" or an object that adds weight, scale, rendering mode, colours and an effect. The full format is in SF Symbols.

Actions#

Four components work with actions. Actions are described in Actions.

Component	What it does with actions
`button`	Shows one action, written inline in an `action` object or named by an `actionRef`.
`iconButton`	Shows one action in the same two ways.
`actions`	Shows the whole list of resolved actions: the issuer's actions plus the template's, after the template's `actionRules`.
`rive`	Runs one action when the animation is clicked.

An action is drawn in at most one cell of a template, which lets you split one list across several cells:

A button with an actionRef claims that action.
An actions cell with include claims the ids it lists.
An actions cell without include shows what is left.

The actions component explains the rules.

Static previews#

A preview that is drawn without a window cannot draw menus or animations. The preview endpoint, the MCP tool render_preview and History thumbnails draw menus (the snooze clock, the "+N" overflow) as static labels, symbol effects as still symbols, and a rive component as a dashed placeholder box of the right size. To test a Rive component without a window, see Testing without a window.
