Icon button

Name: Herald
Author: IVG Design

The iconButton component draws a small round button that holds only an SF Symbol: a close button in the corner of a banner, a snooze clock, a mark-done tick. The Designer calls it Icon btn. Use it for the small controls that sit beside the text rather than in the row of action buttons. It runs one action, written inline or named by an id.

An icon button always draws the symbol from its own symbol property, in a round, faintly tinted circle. To show an action as a labelled capsule that can switch between text, icon and text, or icon only, use button or the actions row instead.

Minimal exampleJSON

{"type":"iconButton","symbol":"xmark","action":{"id":"dismiss","label":"Dismiss","kind":"dismiss"}}

This is the usual close button.

Realistic example

A close button in the top right corner of a banner, next to the title.

JSON

{"name":"icon-button-demo","app":"example.bidbot","layoutVersion":2,"collapseEmpty":false,
 "grid":{"rows":2,"cols":2,"rowSizes":["auto","auto"],"colSizes":["fill","auto"],"gap":4,"padding":12,"width":380},
 "cells":[
  {"id":"title","row":0,"col":0,"component":{"type":"text","binding":"{title}","style":"title"}},
  {"id":"close","row":0,"col":1,"align":"topTrailing",
   "component":{"type":"iconButton","symbol":"xmark","tooltip":"Close",
                "action":{"id":"dismiss","label":"Dismiss","kind":"dismiss"}}},
  {"id":"sub","row":1,"col":0,"colSpan":2,"component":{"type":"text","binding":"{subtitle}","style":"subtitle"}}]}

In the picture below, look at the round button in the top right corner of the banner. It is an icon button that runs a dismiss action.

A banner with a round close button in its top right corner — The round button in the corner of the banner is an icon button that runs a dismiss action.

Properties

Property	Type	Default	Description
`type`	string	required	Always `"iconButton"`.
`symbol`	name or object	required	The SF Symbol to draw, for example `"xmark"`, `"alarm"` or `"checkmark"`. It can also be an object with a `name` and styling. See SF Symbols.
`action`	object	none	An inline action, written out in full. See Actions.
`actionRef`	string	none	The id of an action in the resolved list.
`size`	number	`18`	The diameter of the circle in points. A value below 8 is drawn as 8.
`color`	string	`secondary`	The colour of the symbol: a hex colour, or `accent`, `primary` or `secondary`. A colour in the symbol's own `colors` takes precedence.
`tooltip`	string	the action's label	The text shown when the pointer rests on the button.
`emptyBehavior`	string	template default	`collapse` or `keep`. See Empty icon buttons.

The button needs a non-blank symbol, and an action or an actionRef. Without them the validator reports an error.

The symbol#

symbol is either the name of an SF Symbol or an object that adds styling:

JSON

{"type":"iconButton","size":22,"actionRef":"markRead",
 "symbol":{"name":"checkmark.circle.fill","weight":"semibold","renderingMode":"palette",
           "colors":["#FFFFFF","#34C759"],"effect":{"kind":"bounce","trigger":"onHover"}}}

The object's keys are described in SF Symbols. Three points are specific to an icon button:

placement has no effect, because an icon button has no label to place the symbol beside.
A symbol name that is not an SF Symbol on this Mac draws a question mark in a circle, so a typo still shows something.
In the Designer, the Symbol section of the inspector holds the name, a browser for symbols, and the styling.

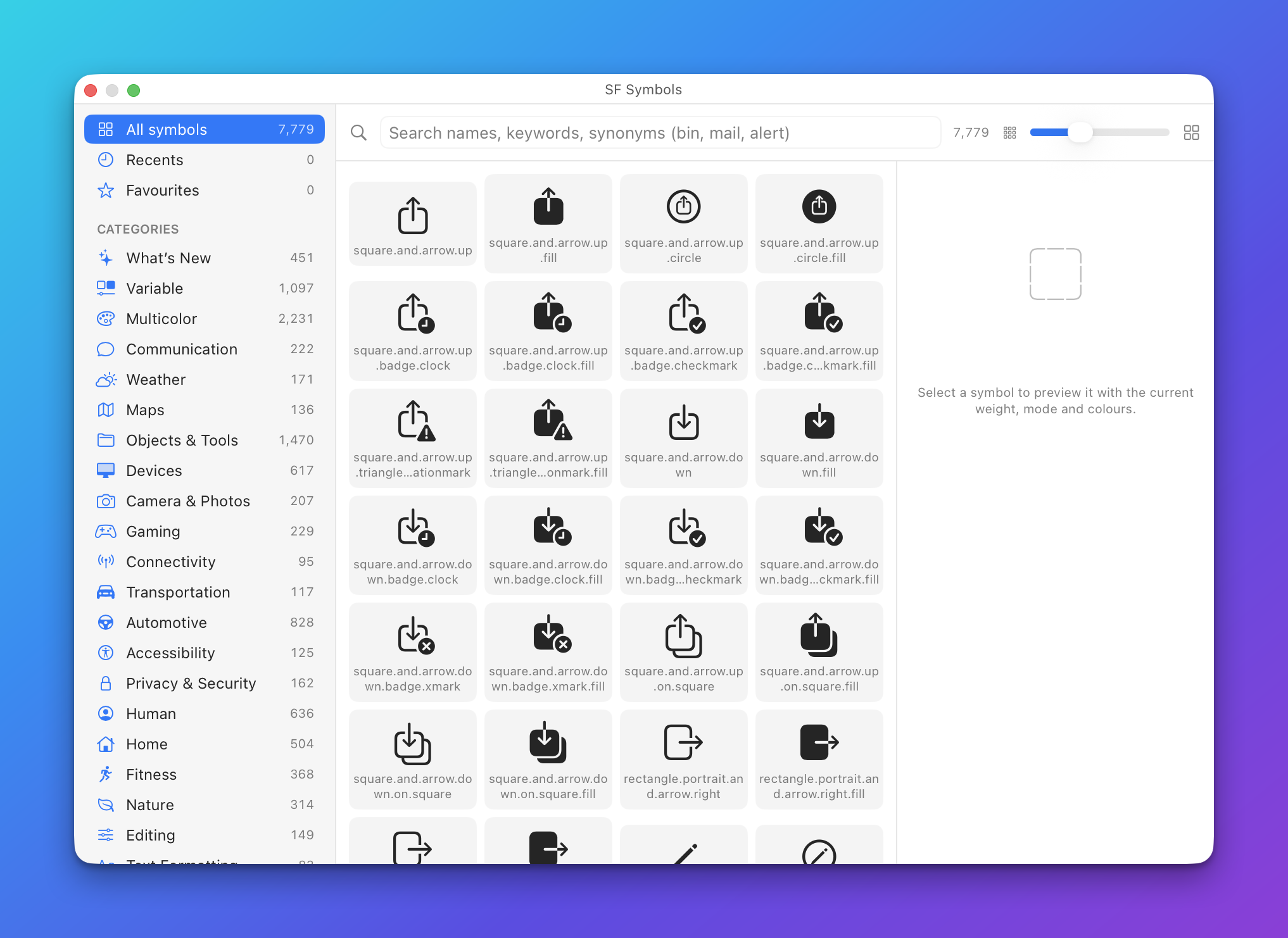

The Designer's symbol browser listing SF Symbols — The symbol browser opens beside the Symbol field and lists SF Symbols by name and category.

The label of the action#

The action's label is not drawn. It is the button's tooltip and the name that VoiceOver reads. Setting tooltip replaces it for both. Give the action a short label such as "Close" or "Snooze". In the Designer's action form the label is optional when Shows is Icon only, and Herald fills in a plain name for what the action does. An action written in JSON needs a label or an id, which stands in for it.

The per-action Shows setting of the Designer's Actions tab, with Text, Icon and text and Icon only, controls capsule buttons. It does not change an icon button, which always draws its own symbol.

What pressing it does#

A dismiss action closes the banner. This is the usual close button.
A snooze action without snoozeMinutes opens Herald's snooze menu with 5 minutes, 15 minutes, 1 hour and Tomorrow 9:00. With snoozeMinutes it snoozes for exactly that long.
Any other kind runs as it does for a button, with the same gates and confirmations.

A snooze menu is drawn as a plain symbol in a static preview.

An icon button is never taken away by a pending inline question, so the banner can always be dismissed.

Sizing and alignment#

The button is a circle of size points with a faint translucent fill.

The symbol is drawn bold at 9 points, or 10 points when size is above 18.
The circle does not wrap or stretch.
It is usually placed with align set to topTrailing for a close button in the corner.
The fill is a faint tint of the primary colour and the symbol uses color, so both follow the light or dark appearance.

Empty icon buttons#

An icon button is empty when its actionRef names an action that is not in the resolved list. An inline action is never empty. A kept empty icon button is invisible and holds its size.

Accepted older forms#

Older form	Current form
`"action": "dismiss"` (a string)	`"actionRef": "dismiss"`

Common mistakes#

Mistake	What happens	Fix
A misspelt symbol name.	A question mark in a circle is drawn.	Look the name up in the SF Symbols app.
Leaving out the action.	The validator reports an error.	Add `action` or `actionRef`.
A `snooze` action with `snoozeMinutes`, expecting the menu.	It snoozes at once for that time.	Omit `snoozeMinutes` to get the menu.
Using an icon button when you want a labelled button that can also show an icon.	The label is never drawn.	Use a `button`, and set the action's symbol.
