BidBot

BidBot is a small Python script that plays the part of an app Herald knows nothing about. In one run it teaches Herald everything it needs to show that app's events well, then sends three of them. Follow it from start to finish to see how an integration is put together: which request does what, and what you see on screen after each one.

What it shows#

1. Register the app: its name, icon and default sound.
2. Publish a manifest: the fields the app can send, with sample values, and the buttons it offers. The manifest lists the fields.
3. Publish a default template, a 3 x 4 grid that the manifest names as its default, so no notification has to ask for it.
4. Send three events (bid accepted, bid lost, deadline soon), each with a picture, buttons, a sound and a spoken line.
5. Give the user a button of their own on every banner: a Shortcut-ready action that the template owns, not BidBot.
6. Optionally receive a callback when someone presses a button.

The script uses only the Python standard library and clients/python/herald.py from this repository. It is registered as the app example.bidbot, and only when you run it.

Before you start#

• Herald is running. Its icon is in the menu bar.
• Python 3 is installed, and you are in a checkout of the Herald repository.
• Optional, to keep your own Herald quiet: a second instance with its own support folder. Without one, the script talks to the Herald you use, shows three banners there and speaks the lines.

Run it#

1. Run the script from the repository root:

   shellCopy

   python3 docs/examples/bidbot/bidbot_demo.py


   The script prints one line for each thing it did:

   textCopy

   Herald 1.8.1 answers on port 48617
   1. registered 'example.bidbot'
   2. manifest saved: fields bid, amount, client, deadline, url, image
   3. template 'bid-card' saved (3 x 4 grid, default for example.bidbot)
      note: no Shortcut named 'Bid follow-up' yet; the Follow up button is wired and will work once you create one (README, "The Shortcut").
   4. sent accepted -> bid-4021
   4. sent lost     -> bid-4017
   4. sent deadline -> bid-4023
   Done. History: Herald menu > History > BidBot. Remove everything with --cleanup.


   The note line appears only while no Shortcut of that name is installed. The version and port are those of your Herald.

2. Look at the corner of the screen. Three banners stack there, each with a chime and a voice line. The voice is the one chosen in Settings > Voice.

3. Open the Herald menu, choose History, and pick BidBot. The three notifications are there, and the speaker button on each plays its line again.

Options#

Run it against a second instance#

Give the script both variables on the same command line. It reads the second instance's port and token files from HERALD_SUPPORT_DIR, and HERALD_PORT overrides the port:

HERALD_PORT=48715 HERALD_SUPPORT_DIR=/tmp/herald-dev python3 docs/examples/bidbot/bidbot_demo.py --quiet

If you set only one, the script talks to the installed Herald, shows the banners there and speaks the lines.

What you get#

The three banners, drawn by the same renderer the live banners use. They come from POST /v1/preview with the command python3 docs/examples/bidbot/bidbot_demo.py --quiet --scale 1.5 --previews docs/examples/bidbot/screenshots.

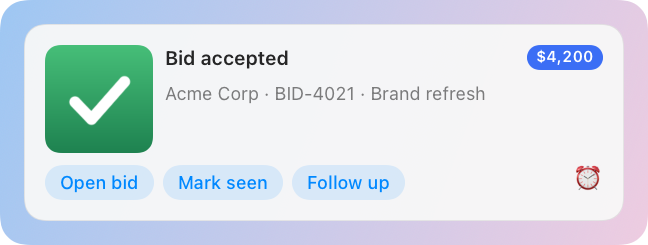

Bid accepted. The amount badge and the three buttons come from the manifest's fields and actions.

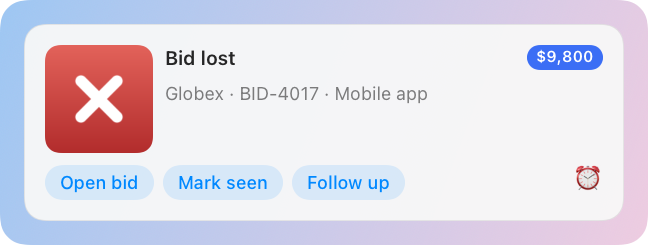

Bid lost. The same template with other field values.

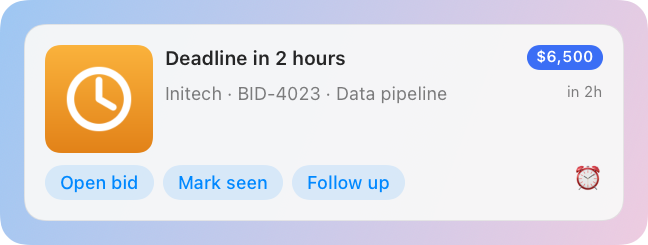

Deadline soon. Each picture has a dark twin in the same folder, named with -dark.

The previews include Mark seen, which BidBot sends only while the script is listening (--wait). The clock icon at the right is the snooze menu. Only the deadline banner has the countdown, "in 2h", at the right of its second line. The other two events send no deadline, so that cell is empty and collapses: the template's collapseEmpty is on, and nothing reserves room for it.

How the script works#

Each step below is one request. The code is in bidbot_demo.py, and every request goes through the Python client.

1. Register the app#

h.register("example.bidbot", appName="BidBot", icon="assets/icon.png",
           defaults={"sound": "Glass", "persistent": True})

POST /v1/register gives the banners BidBot's name and icon and sets the app's defaults: a sound, and banners that stay until closed. Registering is optional, because the first notification registers an unknown app, but without it the banners carry a generic icon. With --wait the script also passes a callbackURL, the address Herald posts to when a callback button is pressed.

With --quiet the default sound is none.

2. The manifest: what BidBot can send#

A manifest tells Herald what an app sends, so the Designer and previews can offer those values before the app has sent anything. PUT /v1/manifest replaces the manifest for example.bidbot.

{
  "app": "example.bidbot",
  "appName": "BidBot",
  "icon": "/path/to/icon.png",
  "version": 1,
  "fields": [
    {"key": "title", "type": "text", "required": true, "sample": "Bid accepted"},
    {"key": "bid", "type": "text", "sample": "BID-4021 · Brand refresh"},
    {"key": "amount", "type": "text", "sample": "$4,200"},
    {"key": "client", "type": "text", "sample": "Acme Corp"},
    {"key": "deadline", "type": "date", "sample": "2026-10-02T09:00:00Z"},
    {"key": "url", "type": "url", "sample": "https://example.com/bids/4021"},
    {"key": "image", "type": "image", "sample": "/path/to/won.png"}
  ],
  "actions": [
    {"id": "open", "label": "Open bid", "kind": "url", "url": "{url}"},
    {"id": "seen", "label": "Mark seen", "kind": "callback"}
  ],
  "defaultTemplate": "bid-card"
}

The two actions are BidBot's own buttons, and defaultTemplate names the template used when a notification names none. The sample values are what the Designer and POST /v1/preview with "data": "sample" draw. Every field in the table is a token a template can bind as {amount}. The manifest reference lists every manifest field.

3. The default template#

A template is the layout of a banner. PUT /v1/templates saves bid-card, a grid of 3 rows and 4 columns:

          col 0 (72 pt)   col 1 (fill)              col 2 (fill)   col 3 (auto)
  row 0   image (rows     title (spans cols 1-2)                   amount badge
  row 1   0 and 1)        "client · bid" (spans cols 1-2)          deadline, relative
  row 2   actions: BidBot's buttons, the template's "Follow up", the snooze menu (spans all 4 columns)

{
  "name": "bid-card",
  "app": "example.bidbot",
  "layoutVersion": 2,
  "collapseEmpty": true,
  "grid": {"rows": 3, "cols": 4, "rowSizes": ["auto", "auto", "auto"], "colSizes": ["72", "fill", "fill", "auto"], "gap": 8, "padding": 14, "width": 400},
  "cells": [
    {"id": "img", "row": 0, "col": 0, "rowSpan": 2, "align": "topLeading", "component": {"type": "image", "binding": "{image}", "fit": "cover", "cornerRadius": 10, "aspectRatio": 1}},
    {"id": "title", "row": 0, "col": 1, "colSpan": 2, "align": "topLeading", "component": {"type": "text", "binding": "{title}", "style": "title", "maxLines": 2}},
    {"id": "amount", "row": 0, "col": 3, "align": "topTrailing", "component": {"type": "badge", "binding": "{amount}", "color": "#3B6EF5"}},
    {"id": "who", "row": 1, "col": 1, "colSpan": 2, "align": "topLeading", "component": {"type": "text", "binding": "{client} · {bid}", "style": "subtitle", "maxLines": 2}},
    {"id": "due", "row": 1, "col": 3, "align": "topTrailing", "component": {"type": "timestamp", "binding": "{deadline}", "relative": true, "style": "caption"}},
    {"id": "acts", "row": 2, "col": 0, "colSpan": 4, "component": {"type": "actions", "source": "merged", "layout": "row", "maxVisible": 4}}
  ],
  "actionRules": [
    {"add": {"id": "followup", "label": "Follow up", "kind": "shortcut", "shortcut": "Bid follow-up", "input": "{client}: {bid} ({amount})\n{url}"}}
  ],
  "snooze": true,
  "persistent": true
}

• collapseEmpty: true means a component with nothing to show disappears together with its row or column and its gap. The first two events have no deadline, so they have no timestamp. Set "collapseEmpty": false, or "emptyBehavior": "keep" on one component, to hold the space instead.
• The actions component shows the merged list: BidBot's buttons first, then what the template adds. layout: "row" keeps them on one line and puts any that do not fit behind a "+N" menu, and maxVisible caps the count.
• snooze: true adds the clock menu to every banner, whoever sent it.
• actionRules adds a button the template owns. The Shortcut explains it.

The cells, the grid and the rules are described in the grid and layout reference.

4. The events#

Each event is one POST /v1/notify. The manifest's fields ride at the top level, next to the usual keys:

h.notify("example.bidbot", "Bid accepted",
         id="bid-4021",                          # a later event with this id replaces the banner in place
         bid="BID-4021 · Brand refresh", amount="$4,200", client="Acme Corp",
         url="https://example.com/bids/4021",
         image="/path/to/won.png",
         priority="high", sound="Glass",
         buttons=[{"label": "Open bid", "url": "https://example.com/bids/4021"}],
         speak={"text": "Bid accepted. Acme Corp signed off on forty two hundred dollars.", "speed": 1.05})

The deadline event also sends deadline, two hours ahead of when the script runs. Speech follows Settings > Voice, and quiet hours and the mute switch apply. See Voice for the speak field.

The Shortcut#

The template, not BidBot, adds one more button through an actionRules entry. It exists on every BidBot banner and BidBot never has to know:

{"add": {"id": "followup", "label": "Follow up", "kind": "shortcut", "shortcut": "Bid follow-up",
         "input": "{client}: {bid} ({amount})\n{url}"}}

Pressing Follow up runs the shortcut named Bid follow-up with the filled-in input as text. For the first event that text is Acme Corp: BID-4021 · Brand refresh ($4,200) and the bid address on a second line. If you drop input, the shortcut receives the whole notification as JSON.

To make the button do something:

1. Open the Shortcuts app and create a shortcut named exactly Bid follow-up.
2. Make it take the text Herald sends as its input.
3. Add the steps you want it to run with that text, such as adding a reminder, creating a note or sending a message.

The first time you press the button, Herald shows the shortcut's name and the exact input and asks you to confirm. It asks again if either changes. Nothing runs when a banner arrives, only when you press the button. The page Actions has the rules. The script lists installed shortcuts with GET /v1/shortcuts and prints the note line above while yours is missing.

A template can also run the same shortcut by itself when a banner goes unanswered. That is a follow-up, and BidBot does not send one. See Forward a notification you missed.

Mark seen: a callback#

python3 docs/examples/bidbot/bidbot_demo.py --wait 60

The script starts a small server on a loopback port, registers its address as callbackURL, and adds a Mark seen button to each banner:

{"label": "Mark seen", "callback": {"payload": {"bid": "bid-4021"}}}

Press it. Herald posts a JSON object with notificationId, app, action and payload to that server, the script prints it, and the script answers 200. A 2xx answer tells Herald the action happened, so the banner goes away. The console shows a line like this:

  callback: 'Mark seen' on bid-4021 payload={"bid": "bid-4021"}

The request Herald sends is described in the callback request.

Try changing it#

• Open Design Template from the Herald menu, pick BidBot's bid-card, and change the grid: move the badge, swap the amount for a progress bar, add an iconButton. The manifest's samples fill the preview. An agent can do the same through the MCP server with get_manifest, put_template and render_preview.
• Add {"match": "seen", "hide": true} to actionRules to hide Mark seen without touching BidBot.
• Turn off Speak for BidBot under Settings > Voice > Speak per app. The events still arrive, silently.

Files and cleanup#

Run python3 docs/examples/bidbot/bidbot_demo.py --cleanup when you are done. It dismisses BidBot's banners and removes its manifest, template and History. The app itself stays under Settings > Apps until you remove it there, or with DELETE /v1/apps/{id} (the MCP tool delete_app), which also removes its History, template and manifest.
